Power Team SPX DG100

Power Team DG100 Pressure Gauge, 0 to 10000 psi Pressure, 1/4 in NPTF Connection, 5 A at 115 VAC, 1 % Accuracy

Invoice description: Dig Pressure Gauge 01000 0 Psi Dig Pressure Gauge 010000 Psi

UNSPSC: 41112412

Manufacturer PN: DG100

^$4,247.82 EA

Factory Order
Estimated to ship in 7 days

enlarge

Product Overview

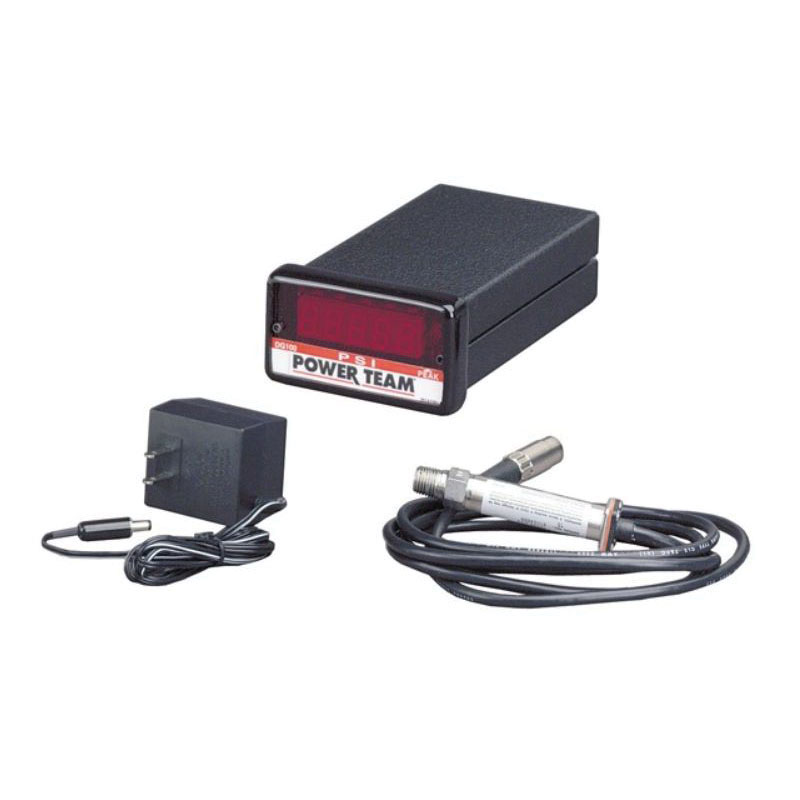

Power Team Pressure Gauge, 0 to 10000 psi Pressure, 1/4 in NPTF Connection, 5 A at 115 VAC Electrical Rating, 1 % Accuracy, Digital LED Display, 0 to 140 deg F, Aluminum

Features
Larger display characters than ordinary digital gauges
Long-life pressure transducer
6 ft (1.8 m) signal input cable connects to back of display unit
Pressure values are displayed on large red LEDs in 10 psi (0.7 bar) or bar increments
Peak hold feature with reset toggle switch and peak on indicator, hi/low set point feature with relay outputs for hi/low alarms and/or control signals
A slow flashing display indicates pressure below the low limit, fast blinking display alerts if limit is exceeded
High and low limit relays are rated to 5 A at 115 V
Operating temperature of 0 to 140 deg F (-18 to 60 deg C) for the electronic display and -20 to 180 deg F (-29 to 82 deg C) for the transducer, gauge housings are extruded aluminum 1/8 DIN enclosures (NEMA 1 rating)
When power cable is connected to gauge, display will scroll all characters, performing a self diagnostic routine
Serviced only at factory
