Enerpac ENE G2509L

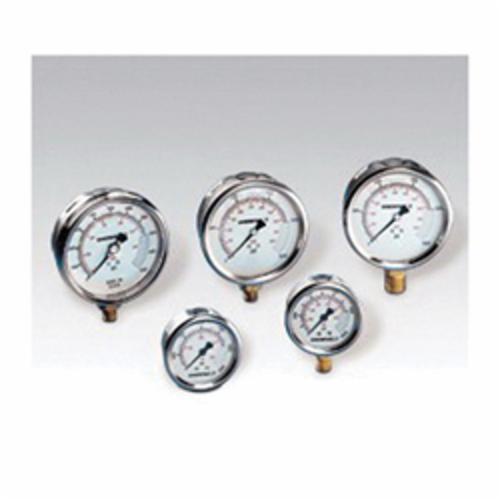

Enerpac G2509L Hydraulic Pressure Gauge, 0 to 100 psi, 1/4 in FNPT Connection, 2-1/2 in Dial, +/- 1.5% Full Scale, 2 to 10 psi Graduations, Glycerin Liquid Filled
Invoice description:
Gauge 0-100psi 2.5" Liq 0-100 Psi, 2.5" Liq
In stock
(1)
Enerpac Hydraulic Pressure Gauge, Series: G, 0 to 100 psi, 1/4 in FNPT, 2-1/2 in Dial Diameter, +/- 1.5% Full Scale Accuracy, Graduations: 2 to 10 psi, Liquid Filled: Glycerin, Lower Mount, Stainless Steel Case, 84 mm H x 37 mm D
Features
- Dual scale reading calibrated in bar and psi
- All pressure gauge sensing parts sealed and dampened by glycerin for long life
- Gauge snubbers or needle valves recommended for high cycle applications
- Glass lens
Specifications
ApplicationGeneral Purpose Applications
Accuracy+/- 1.5% Full Scale
Connection Size1/4 in FNPT
Dial Diameter2-1/2 in
Dimensions84 mm H x 37 mm D
Graduations2 to 10 psi
Liquid FilledGlycerin
MaterialStainless Steel Case
Mounting TypeLower
Pressure Range0 to 100 psi
SeriesG Series
Additional Information
IncludesSafety Blow-Out Disk and Pressure Equalizing Membrane
Country of OriginUS
Specification Sheet
