Iscar ISCAR 6402260

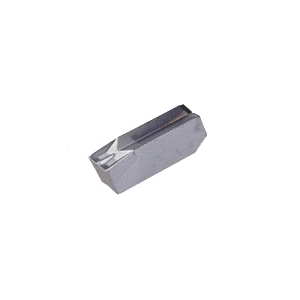

Iscar 6402260 CUT-GRIP Parting Insert, 3.2 Insert, GIM Insert, Material Grade: M, P, 3.2 mm W Cutting, Neutral Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC354, PVD Coated
Invoice description:
Gim3.2 Ic354 Iscar Cut-g Rip Inserts
Factory Order
Iscar Parting Insert, Series: CUT-GRIP, GIM Insert, 3.2 Insert, 3.2 mm Cutting Width, Neutral Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 3.2 mm Width, 0.22 mm Corner Radius, Manufacturers Grade: IC354, ISO Code: GIM 3.2 IC354, 90 deg Included Angle, Ambidextrous Hand of Insert, Carbide, PVD Coated, Material Grade: M, P
Features
- W-type chipformer, with a central ridge that forms double cavities on the rake face
- Most efficient on alloy steel
- IC354 grade - a thin PVD-coated TiCN layer on a P40 substrate
- High toughness
- For general applications in parting and grooving steel, alloy and stainless steel at medium-to-high cutting speeds

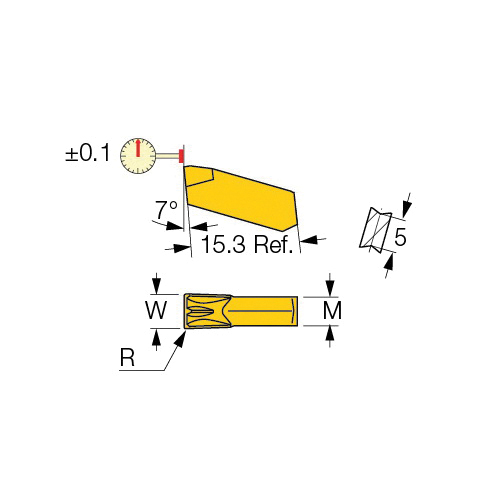

Specifications
ApplicationExternal Grooving, Internal Grooving and Groove Turning
Corner Radius0.22 mm
Cutting Width3.2 mm
FinishPVD Coated
Hand of InsertAmbidextrous
Included Angle90 deg
Insert Size3.2
Insert StyleGIM
ISO CodeGIM 3.2 IC354
Lead Angle DirectionNeutral
Manufacturers GradeIC354
MaterialCarbide
Material GradeM, P
Relief Angle7 deg
SeriesCUT-GRIP
ShapeRectangle
Width3.2 mm
Additional Information
Country of OriginIL
