Iscar ISCAR 6000241

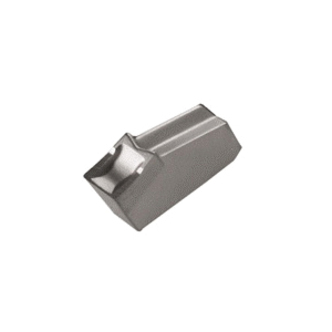

Iscar 6000241 SELF-GRIP Cut-Off/Parting Insert, 1.6 Insert, GFN Insert, Material Grade: H, K, M, N, S, 1.6 mm W Cutting, 0 deg Lead Angle, Neutral Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC20, Uncoated
Invoice description:
Gfn 1.6 Ic20
Factory Order
Iscar Cut-Off/Parting Insert, Series: SELF-GRIP, GFN Insert, 1.6 Insert, 1.6 mm Cutting Width, 0 deg Lead Angle, Neutral Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 1.6 mm Width, 0.16 mm Corner Radius, Manufacturers Grade: IC20, ISO Code: GFN 1.6 IC20, 90 deg Included Angle, Ambidextrous Hand of Insert, Carbide, Uncoated, Material Grade: H, K, M, N, S
Features
- First choice for the parting of bars, hard materials and tough applications
- Positive rake, single cavity with a negative land and shoulders, provides extra cutting edge strength
- Medium-to-high feeds
- IC20 grade - used for semi-finishing, finishing and semi-roughing of aluminum, cast iron and stainless steel
Specifications
ApplicationExternal Grooving, Internal Grooving and Groove Turning
Corner Radius0.16 mm
Cutting Width1.6 mm
FinishUncoated
Hand of InsertAmbidextrous
Included Angle90 deg
Insert Size1.6
Insert StyleGFN
ISO CodeGFN 1.6 IC20
Lead Angle0 deg
Lead Angle DirectionNeutral
Manufacturers GradeIC20
MaterialCarbide
Material GradeH, K, M, N, S
Relief Angle7 deg
SeriesSELF-GRIP
ShapeRectangle
Width1.6 mm
Additional Information
Country of OriginIL
