Iscar ISCAR 6000237

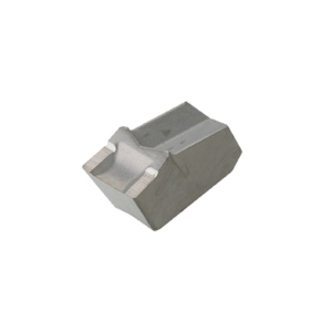

Iscar 6000237 SELF-GRIP Cut-Off/Parting Insert, 3A Insert, GFN Insert, Material Grade: H, K, M, N, P, S, 3.03 mm W Cutting, 0 deg Lead Angle, Neutral Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC20, Uncoated

UNSPSC: 23291503
Manufacturer PN: 6000237
$15.78 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Cut-Off/Parting Insert, Series: SELF-GRIP, GFN Insert, 3A Insert, 3.03 mm Cutting Width, 0 deg Lead Angle, Neutral Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 3.03 mm Width, A Chipbreaker, 0.2 mm Corner Radius, Manufacturers Grade: IC20, ISO Code: GFN 3A IC20, 90 deg Included Angle, Neutral Hand of Insert, Carbide, Uncoated, Material Grade: H, K, M, N, P, S

  • Features

  • First choice for the parting aluminum bars
  • A positive rake and sharp cutting edge
  • IC20 grade - used for semi-finishing, finishing and semi-roughing of aluminum, cast iron and stainless steel
  • An uncoated carbide grade
  • A-type chipbreaker - positive rake, sharp edge

Specifications

ApplicationExternal Grooving, Groove Turning and Internal Grooving
ChipbreakerA
Corner Radius0.2 mm
Cutting Width3.03 mm
FinishUncoated
Hand of InsertNeutral
Included Angle90 deg
Insert Size3A
Insert StyleGFN
ISO CodeGFN 3A IC20
Lead Angle0 deg
Lead Angle DirectionNeutral
Manufacturers GradeIC20
MaterialCarbide
Material GradeH, K, M, N, P, S
Relief Angle7 deg
SeriesSELF-GRIP
ShapeRectangle
Width3.03 mm
