Iscar ISCAR 5621958

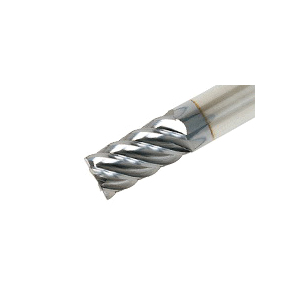

Iscar 5621958 SOLIDMILL Center Cutting Regular Length Single End Square End End Mill, 1/2 in Dia Cutter, 1 in Length of Cut, 6 Flutes, 1/2 in Dia Shank, 3 in OAL, PVD Coated
Invoice description:
Echi-b6 500-1.0-c500 903
Factory Order

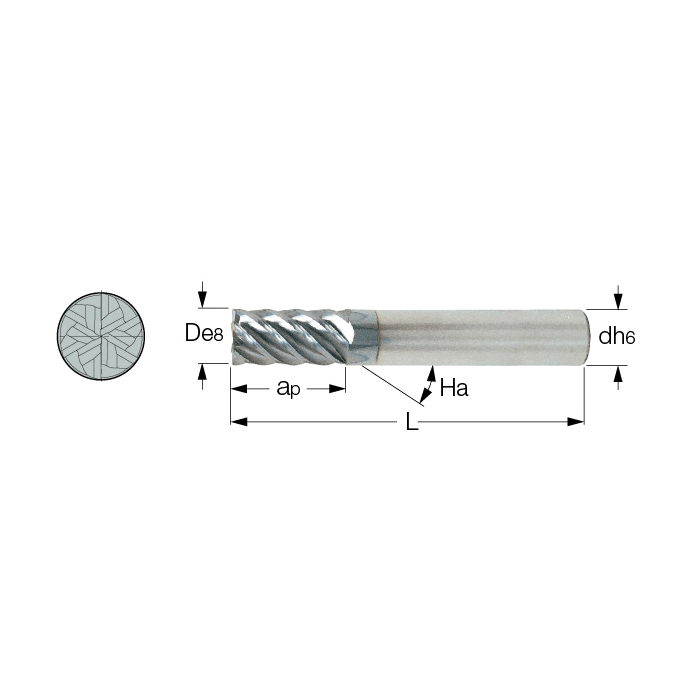

Iscar End Mill, Center Cutting Regular Length Single End Square End, Series: SOLIDMILL, 1/2 in Diameter Cutter, 3 in Overall Length, 1 in Length of Cut, 6 Flutes, Spiral Flute, 1/2 in Shank Diameter, Right Hand Cutting Direction, 45 deg Helix Angle, Cylindrical Shank, ANSI Code: ECHI-B6 500-1.0-C500, Solid Carbide, PVD Coated
Features
- ER spring collets with hard touch coating which increases wear resistance, improves corrosion protection, prolongs the surface finish quality and maintains longer run out accuracy
- IC903 Grade - Ultra-fine carbide grain with 12% cobalt, TiAlN PVD coated
- High wear resistance and toughness
- High speed, medium feed
- Used for finishing of hard materials up to 65 HRc
- Used for up to 62Rc hardened steel, titanium, nickel-based alloys and stainless stee
Specifications
ApplicationCounter Boring, Drill Mill, Helical Interpolation, Plunging, Recessing, Shouldering and Slotting
ANSI CodeECHI-B6 500-1.0-C500
Cutter Diameter1/2 in
Cutting DirectionRight Hand
FinishPVD Coated
Flute TypeSpiral
Helix Angle45 deg
Length of Cut1 in
MaterialSolid Carbide
Number of Flutes6
Overall Length3 in
SeriesSOLIDMILL
Shank Diameter1/2 in
Shank TypeCylindrical
TypeCenter Cutting Regular Length Single End Square End
Additional Information
Country of OriginIL
