Iscar ISCAR 5623412

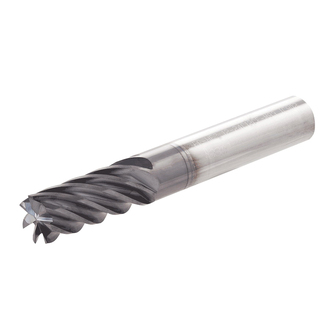

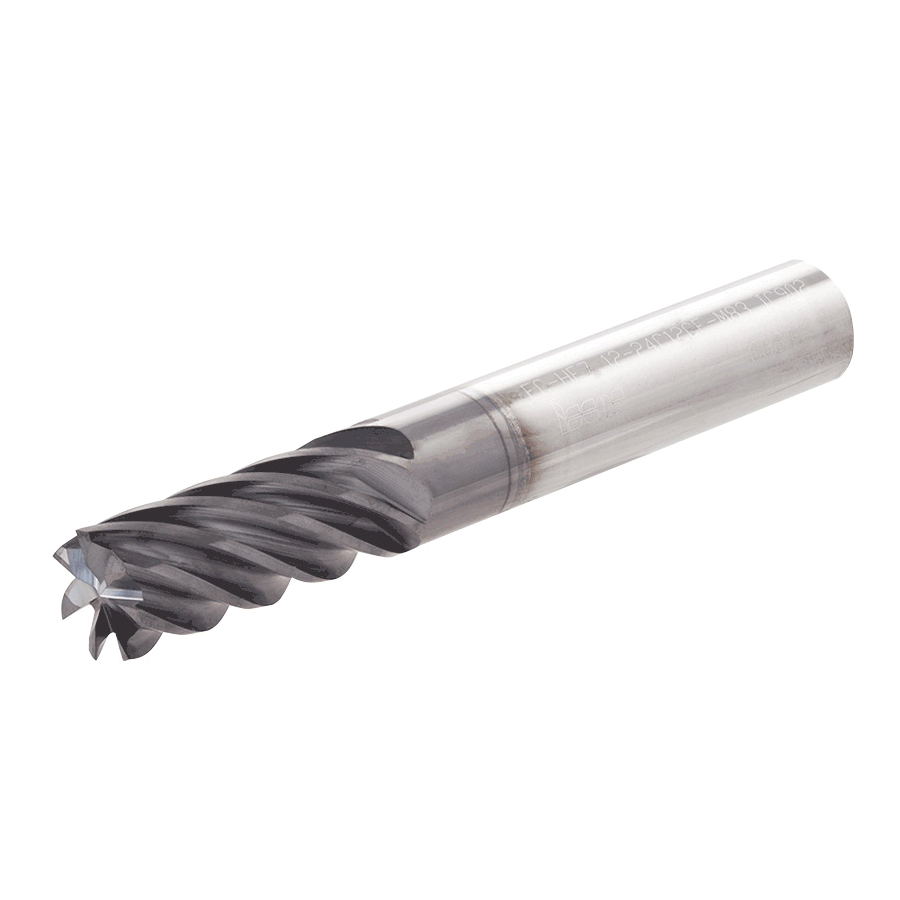

Iscar 5623412 SOLIDMILL CHATTERFREE SAFE-LOCK Square End Mill, 1/2 in Dia Cutter, 1 in Length of Cut, 7 Flutes, 1/2 in Dia Shank, 3-1/2 in OAL, PVD-TiAlN Coated

Invoice description: Eci-h7 500-1.0c500cf-3.5 End Mill Finisher,

UNSPSC: 27112803
Manufacturer PN: 5623412
$213.87 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Square End Mill, Series: SOLIDMILL CHATTERFREE SAFE-LOCK, 1/2 in Cutter Dia, 3-1/2 in Overall Length, 1 in Length of Cut, 7 Flutes, Spiral Flute, 1/2 in Shank Dia, Right Hand Cutting, 37 deg Helix Angle, Cylindrical Shank, ANSI Code: ECI-H7 500-1.0C500CF-3.5, ISO Code: ECI-E7/H7-CF, Submicron Grain Solid Carbide, PVD-TiAlN Coated

  • Features

  • 7-flute end mills with different helix and variable pitch, for CHATTERFREE high speed/trochoidal milling and finishing operations
  • Can machine at radial width of cut of up to 0.1XD

Specifications

ApplicationMilling
ANSI CodeECI-H7 500-1.0C500CF-3.5
Cutter Diameter1/2 in
Cutting DirectionRight Hand
FinishPVD-TiAlN Coated
Flute TypeSpiral
Helix Angle37 deg
ISO CodeECI-E7/H7-CF
Length of Cut1 in
MaterialSubmicron Grain Solid Carbide
Number of Flutes7
Overall Length3-1/2 in
SeriesSOLIDMILL CHATTERFREE SAFE-LOCK
Shank Diameter1/2 in
Shank TypeCylindrical

Additional Information

Standards/ApprovalISO 13399
