Iscar ISCAR 5623414

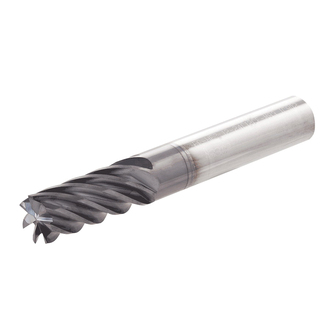

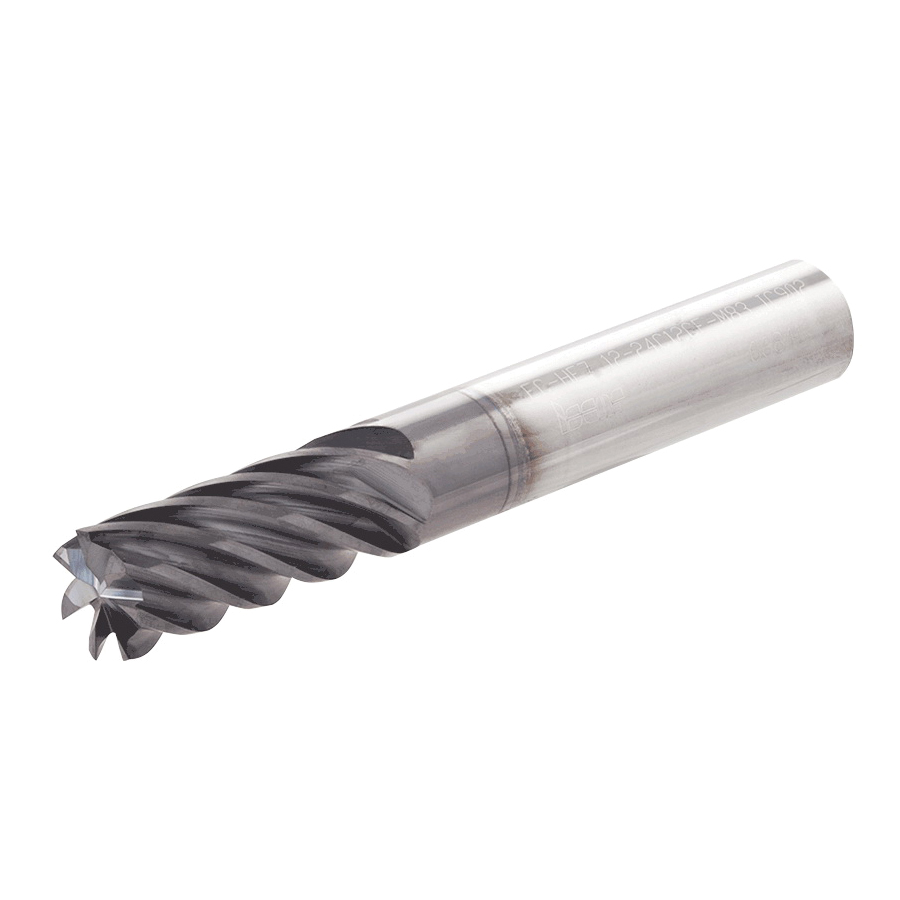

Iscar 5623414 SOLIDMILL CHATTERFREE SAFE-LOCK Square End Mill, 5/8 in Dia Cutter, 1-1/4 in Length of Cut, 7 Flutes, 5/8 in Dia Shank, 4 in OAL, PVD-TiAlN Coated

UNSPSC: 27112803
Manufacturer PN: 5623414
$327.38 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Square End Mill, Series: SOLIDMILL CHATTERFREE SAFE-LOCK, 5/8 in Cutter Dia, 4 in Overall Length, 1-1/4 in Length of Cut, 7 Flutes, Spiral Flute, 5/8 in Shank Dia, Right Hand Cutting, 37 deg Helix Angle, Cylindrical Shank, ANSI Code: ECI-H7 625-1.25C625CF-4, ISO Code: ECI-E7/H7-CF, Submicron Grain Solid Carbide, PVD-TiAlN Coated

  • Features

  • 7-flute end mills with different helix and variable pitch, for CHATTERFREE high speed/trochoidal milling and finishing operations
  • Can machine at radial width of cut of up to 0.1XD

Specifications

ApplicationMilling
ANSI CodeECI-H7 625-1.25C625CF-4
Cutter Diameter5/8 in
Cutting DirectionRight Hand
FinishPVD-TiAlN Coated
Flute TypeSpiral
Helix Angle37 deg
ISO CodeECI-E7/H7-CF
Length of Cut1-1/4 in
MaterialSubmicron Grain Solid Carbide
Number of Flutes7
Overall Length4 in
SeriesSOLIDMILL CHATTERFREE SAFE-LOCK
Shank Diameter5/8 in
Shank TypeCylindrical
