Midland Industries MIDM 944434

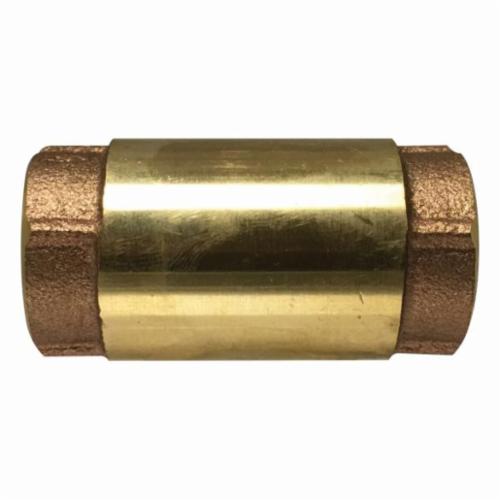

Midland Industries 944434 Lift In-Line Check Valve, 1-1/2 in Nominal, NPT End Style, Forged Brass Body, Import

Invoice description: Valve 1-1/2ips 3 In-line

UNSPSC: 40141659
Manufacturer PN: 944434
$85.43 EA
Factory Order
Estimated to ship in 7 days
QTY:


Midland Industries In-Line Check Valve, Lift, Series, 1-1/2 Nominal, End Style in, 200 psi WOG/125 psi WSP, Pressure Class, 14 to 248, Low Lead Compliance deg F, Port Type, Media: Water, Oil, Gas and Saturated Steam, Actuator Type, Top to Inlet Center, Forged Brass Body, Trim Material, Finish, Dimensions, Import

  • Features

  • Resilient discs, spring actuated
  • Resilient washer hold/disc in brass
  • Corrosion-resistant material
  • Opens and closes with flow of media
  • Can be used vertically or horizontally
  • No cracking pressure
  • Insures against leakage
  • Stainless steel spring loaded bronze poppet
  • No lead free
  • For positive sealing and self-cleaning

Specifications

Body MaterialForged Brass
Dimensions2.618 in H x 2.717 in W
Domestic/ImportImport
End StyleNPT
MediaWater, Oil, Gas and Saturated Steam
Nominal Size1-1/2 in
Pressure Rating200 psi WOG/125 psi WSP
Temperature Rating14 to 248 deg F
Trim MaterialAISI 304 Stainless Steel
TypeLift

Additional Information

Country of OriginID
