Midland Industries MIDM 944404

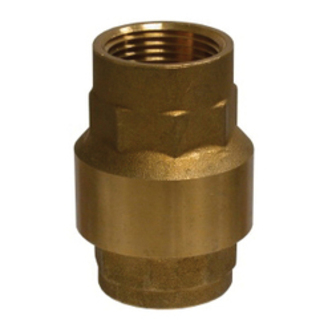

Midland Industries 944404 In-Line Check Valve, 3/4 in Nominal, FNPT End Style, Brass Body

Invoice description: 3/4 Brass In-line Check Valve

UNSPSC: 40141622
Manufacturer PN: 944404
$42.70 EA
Factory Order
Estimated to ship in 14 days
QTY:


Midland Industries In-Line Check Valve, 3/4 in Nominal Size, FNPT, 400 psi WOG, 10 to 210 deg F, Media: Oil/Water, Brass Body, 100002 NBR/Polyetherimide Trim

  • Features

  • Compact design
  • Patented disc guide to prevent any side loading
  • Flow profile designed to minimize head loss
  • Perfect seating both at high and low-pressure
  • Polyethermide disc to ensure the best resistance for corrosion and abrasion
  • Soft seat for bubble tight shutoff, spring loaded for fast seating action
  • Stainless steel spring
  • Cracking Pressure: 1/2 psi

Specifications

Body MaterialBrass
End StyleFNPT
MediaOil/Water
Nominal Size3/4 in
Pressure Rating400 psi WOG
Temperature Rating10 to 210 deg F
Trim Material100002 NBR/Polyetherimide

Additional Information

Country of OriginUS
