Midland Industries MIDM 940353

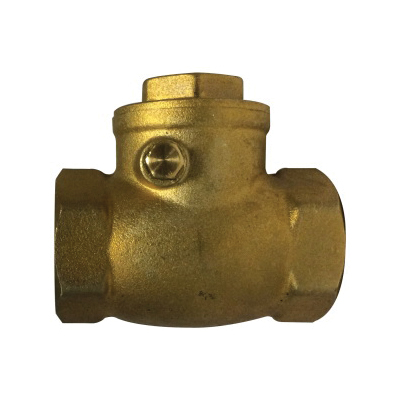

Midland Industries 940353 Swing Check Valve, 3/4 in Nominal, IPS Thread End Style, PTFE, C37700 Brass Body, Import

Invoice description: Valve 3/4ips Br Swg Chec K

UNSPSC: 40141634
Manufacturer PN: 940353
$28.30 EA
Factory Order
Estimated to ship in 7 days
QTY:


Midland Industries Swing Check Valve, 3/4 in Nominal, IPS Thread End Style, 200 psi WOG/125 psi WSP Pressure, -5 to 150 deg F, No Low Lead Compliance, Media: Cold Water, Oil, Gas and Saturated Steam, C37700 Brass Body, C37700 Brass Trim, PTFE Softgoods, 1.417 in H x 2.382 in W Dimensions, Domestic/Import: Import

  • Features

  • Swing type disc
  • Hard and integral seat
  • 90 deg straight pattern
  • Not lead free
  • C37700 brass cap/bar/screw
  • PTFE gasket

Specifications

ApplicationFor used to prevent reverse flow in commercial and industrial applications
Body MaterialC37700 Brass
Dimensions1.417 in H x 2.382 in W
Domestic/ImportImport
End StyleIPS Thread
Low Lead ComplianceNo
MediaCold Water, Oil, Gas and Saturated Steam
Nominal Size3/4 in
Pressure Rating200 psi WOG/125 psi WSP
Softgoods MaterialPTFE
Temperature Rating-5 to 150 deg F
Trim MaterialC37700 Brass

Additional Information

Standards/ApprovalANSI B1.20.1
Country of OriginID
