MMM MIDM 18187

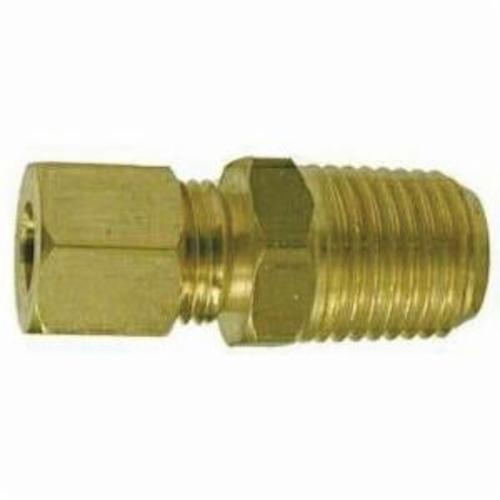

MMM 18187 Tube-to-Pipe Adapter, 3/8 x 1/8 in, Compression x MNPTF, Brass, Import

Invoice description: Adapt 3/8x1/8 Compxmip

UNSPSC: 40183109
Manufacturer PN: 18187
$3.78 EA
Factory Order
Estimated to ship in 7 days
QTY:


MMM Tube-to-Pipe Adapter, Adapter, 3/8 x 1/8 in Nominal, Compression x MNPTF, 0.56 in Hex, 200 psi, -65 to 250 deg F, Brass, Import

  • Features

  • Manufactured for low and medium pressure tubing connection work where excessive vibration or tube movement is not involved
  • Fair resistance use long nut when greater vibration resistance is needed
  • /-0.02 tolerance on all dimensions
  • Not recommended for steel tubing

Specifications

ApplicationFor use with aluminum, copper, brass and thermoplastic tubing
Domestic/ImportImport
End StyleCompression x MNPTF
Fitting/Connector TypeAdapter
Hex Size0.56 in
MaterialBrass
Nominal Size3/8 x 1/8 in
Pressure Rating200 psi
Temperature Rating-65 to 250 deg F

Additional Information

Standards/ApprovalASA|ASME and SAE 060102
Country of OriginCN
