GARR GARR 99357

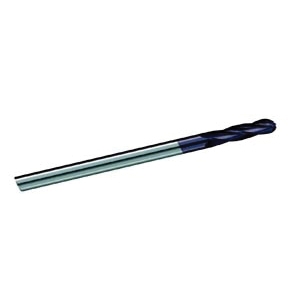

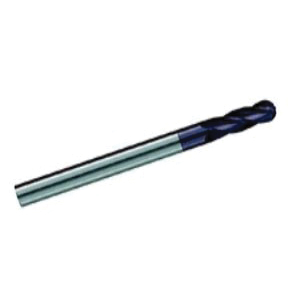

GARR 99357 750MA Ball Nose Center Cutting Extra Length Ball End Mill, 20 mm Dia Cutter, 50 mm Length of Cut, 4 Flutes, 20 mm Dia Shank, 150 mm OAL, TiAlN Coated
Invoice description:
Bem 20x50locx20x150mm 4fl Tialn Xl
Factory Order
GARR Ball End Mill, Center Cutting Extra Length Single End, Series: 750MA, 20 mm Diameter Cutter, 150 mm Overall Length, 50 mm Length of Cut, 4 Flutes, Spiral Flute, 20 mm Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Solid Submicron Grain Carbide, TiAlN Coated
Features
- Extended reach
- Can be modified with a neck
- Extremely versatile
- Up to 40% faster than uncoated
- Ball radius tolerance +0.000 to 0.001 in (+0.000 to 0.025 mm)
Specifications
ApplicationDry or Semi-Dry Machining
Cutter Diameter20 mm
Cutting DirectionRight Hand
FinishTiAlN Coated
Flute TypeHelix
Helix Angle30 deg
Length of Cut50 mm
MaterialSubmicron Solid Carbide
Number of Flutes4
Overall Length150 mm
Series750MA
Shank Diameter20 mm
TypeBall Nose Center Cutting Extra Length
Additional Information
Country of OriginUS
