GARR GARR 99330

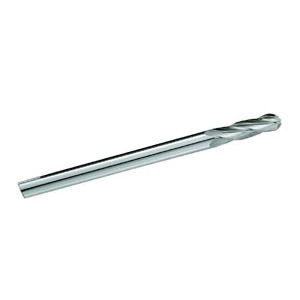

GARR 99340 750M Ball End Center Cutting Extra Length End Mill, 18 mm Dia Cutter, 50 mm Length of Cut, 4 Flutes, 18 mm Dia Shank, 150 mm OAL, Uncoated
Invoice description:
Bem 18x50locx18x150mm 4fl N/c Xl
Factory Order
GARR End Mill, Ball End Center Cutting Extra Length, 18 mm Cutter Dia, 150 mm Overall Length, 50 mm Length of Cut, 4 Flutes, Helix Flute, 18 mm Shank Dia, Right Hand Cutting, 30 deg Helix Angle, Submicron Solid Carbide, Uncoated
Features
- Extended reach
- Can be modified with a neck
- Extremely versatile
- Ball radius tolerance +0.000 to 0.001 in (+0.000 to 0.025 mm)
Specifications
Cutter Diameter18 mm
Cutting DirectionRight Hand
FinishUncoated
Flute TypeHelix
Helix Angle30 deg
Length of Cut50 mm
MaterialSubmicron Solid Carbide
Number of Flutes4
Overall Length150 mm
Series750M
Shank Diameter18 mm
TypeBall End Center Cutting Extra Length
Additional Information
Country of OriginUS
Specification Sheet
