GARR GARR 99260

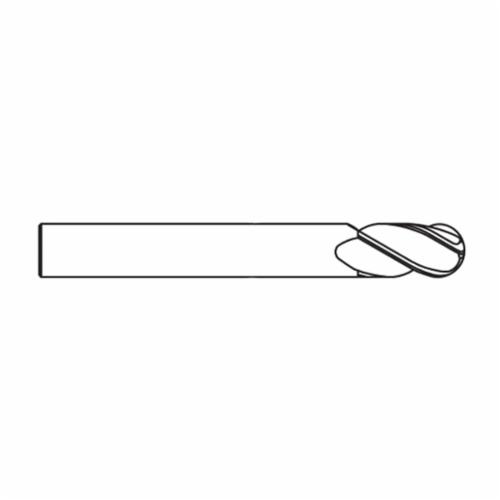

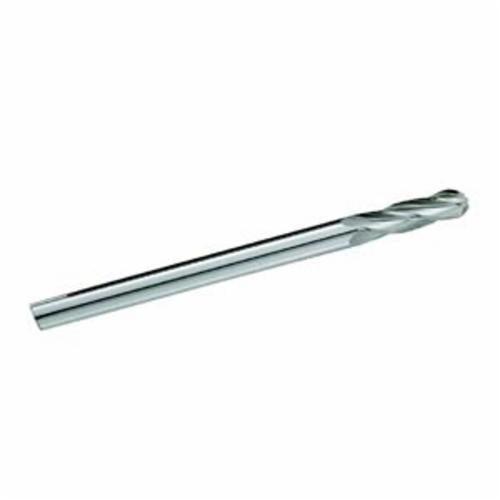

GARR 99250 750M Ball End Center Cutting Extra Length Ball End Mill, 12 mm Dia Cutter, 75 mm Length of Cut, 4 Flutes, 12 mm Dia Shank, 150 mm OAL, Uncoated

UNSPSC: 23242511
Manufacturer PN: 99260
$117.40 EA
Factory Order
Estimated to ship in 7 days
QTY:


GARR Ball End Mill, Center Cutting Extra Length Single End, Series: 750M, 12 mm Diameter Cutter, 150 mm Overall Length, 75 mm Length of Cut, 4 Flutes, Spiral Flute, 12 mm Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, 75 mm Shank Length, Solid Submicron Grain Carbide, Uncoated

  • Features

  • Extended reach
  • Can be modified with a neck
  • Extremely versatile
  • Ball radius tolerance +0.000 to 0.001 in (+0.000 to 0.025 mm)

Specifications

Cutter Diameter12 mm
Cutting DirectionRight Hand
FinishUncoated
Flute TypeSpiral
Helix Angle30 deg
Length of Cut75 mm
MaterialSolid Submicron Carbide
Number of Flutes4
Overall Length150 mm
Series750M
Shank Diameter12 mm
Shank Length75 mm
TypeBall End Center Cutting Extra Length
