GARR GARR 99250

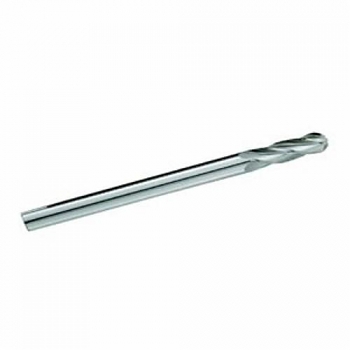

GARR 99250 750M Ball End Center Cutting Extra Length End Mill, 12 mm Dia Cutter, 50 mm Length of Cut, 4 Flutes, 12 mm Dia Shank, 150 mm OAL, Uncoated
Factory Order
GARR End Mill, Ball End Center Cutting Extra Length, 12 mm Cutter Dia, 150 mm Overall Length, 50 mm Length of Cut, 4 Flutes, Spiral Flute, 12 mm Shank Dia, Right Hand Cutting, 30 deg Helix Angle, 100 mm Shank Length, Solid Submicron Carbide, Uncoated
Features
- Extended reach
- Can be modified with a neck
- Extremely versatile
- Ball radius tolerance +0.000 to 0.001 in (+0.000 to 0.025 mm)
Specifications
Cutter Diameter12 mm
Cutting DirectionRight Hand
FinishUncoated
Flute TypeSpiral
Helix Angle30 deg
Length of Cut50 mm
MaterialSolid Submicron Carbide
Number of Flutes4
Overall Length150 mm
Series750M
Shank Diameter12 mm
Shank Length100 mm
TypeBall End Center Cutting Extra Length
Specification Sheet
