GARR GARR 99197

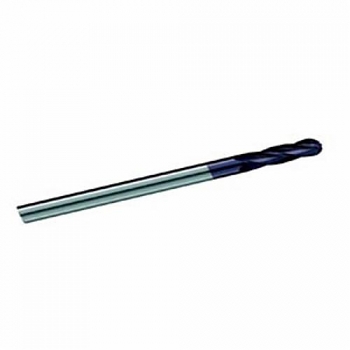

GARR 99197 750MA Ball End Center Cutting Extra Length Ball End Mill, 10 mm Dia Cutter, 25 mm Length of Cut, 4 Flutes, 10 mm Dia Shank, 100 mm OAL, TiALN Coated
Invoice description:
Bem 10x25locx10x100mm 4fl Tialn Xl
Factory Order
GARR Ball End Mill, Ball End Center Cutting Extra Length, Series: 750MA, 10 mm Diameter Cutter, 100 mm Overall Length, 25 mm Length of Cut, 4 Flutes, Spiral Flute, 10 mm Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, 75 mm Shank Length, Solid Submicron Carbide, TiALN Coated
Features
- Extended reach
- Can be modified with a neck
- Extremely versatile
- Up to 40% faster than uncoated
- Ball radius tolerance +0.000 to 0.001 in (+0.000 to 0.025 mm)
Specifications
ApplicationDry or Semi-Dry Machining
Cutter Diameter10 mm
Cutting DirectionRight Hand
FinishTiALN Coated
Flute TypeSpiral
Helix Angle30 deg
Length of Cut25 mm
MaterialSolid Submicron Carbide
Number of Flutes4
Overall Length100 mm
Series750MA
Shank Diameter10 mm
Shank Length75 mm
TypeBall End Center Cutting Extra Length
Additional Information
Country of OriginUS
