GARR GARR 99168

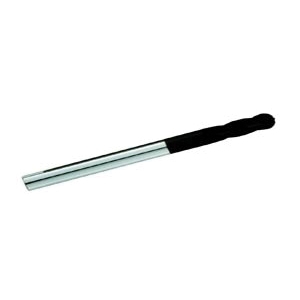

GARR 99168 710D Ball End Center Cutting Extra Length End Mill, 8 mm Dia Cutter, 25 mm Length of Cut, 4 Flutes, 8 mm Dia Shank, 100 mm OAL, Crystalline Diamond Coated
Invoice description:
Bem 8x25locx8x100mm 4fl Cvd Xl
Factory Order
GARR End Mill, Ball End Center Cutting Extra Length, Series: 710D, 8 mm Diameter Cutter, 100 mm Overall Length, 25 mm Length of Cut, 4 Flutes, Helix Flute, 8 mm Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Grade C-2 Solid Carbide, Crystalline Diamond Coated
Features
- Up to 17 times tool life versus uncoated end mills
- For graphite, fiber reinforced plastics, carbon fiber and high silicon aluminum
- Ball radius tolerance +0.000 to 0.001 in (+0.000 to 0.025 mm)
Specifications
ApplicationFor graphite, fiber reinforced plastics, carbon fiber and high silicon aluminum
Cutter Diameter8 mm
Cutting DirectionRight Hand
FinishCrystalline Diamond Coated
Flute TypeHelix
Helix Angle30 deg
Length of Cut25 mm
MaterialGrade C-2 Solid Carbide
Number of Flutes4
Overall Length100 mm
Series710D
Shank Diameter8 mm
TypeBall End Center Cutting Extra Length
Additional Information
Country of OriginUS
Specification Sheet
