GARR GARR 98380

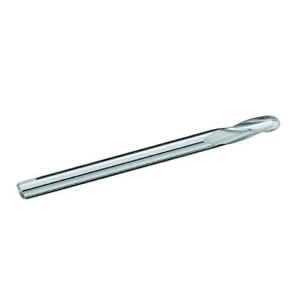

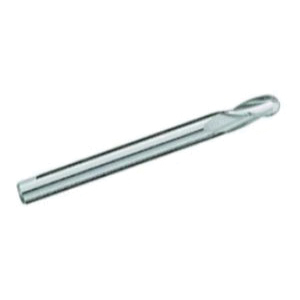

GARR 98370 743M Ball End Center Cutting Extra Length End Mill, 25 mm Dia Cutter, 75 mm Length of Cut, 3 Flutes, 25 mm Dia Shank, 150 mm OAL, Uncoated

Invoice description: Bem 25x75locx25x150mm 3fl N/c Xl

UNSPSC: 27112803
Manufacturer PN: 98380
$463.34 EA
Factory Order
Estimated to ship in 7 days
QTY:


GARR End Mill, Ball End Center Cutting Extra Length, Series: 743M, 25 mm Diameter Cutter, 150 mm Overall Length, 75 mm Length of Cut, 3 Flutes, Helix Flute, 25 mm Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Submicron Solid Carbide, Uncoated

  • Features

  • Extended reach
  • Can be modified with a neck
  • Extremely versatile
  • Ball radius tolerance +0.000 to 0.001 in (+0.000 to 0.025 mm)

Specifications

Cutter Diameter25 mm
Cutting DirectionRight Hand
FinishUncoated
Flute TypeHelix
Helix Angle30 deg
Length of Cut75 mm
MaterialSubmicron Solid Carbide
Number of Flutes3
Overall Length150 mm
Series743M
Shank Diameter25 mm
TypeBall End Center Cutting Extra Length

Additional Information

Country of OriginUS
