GARR GARR 97360

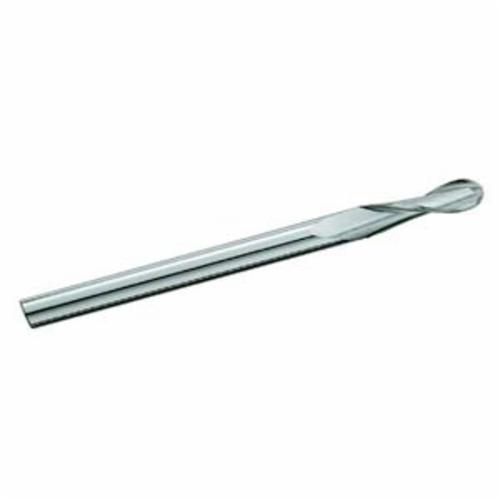

GARR 97350 740M Ball End Center Cutting Extra Length End Mill, 20 mm Dia Cutter, 75 mm Length of Cut, 2 Flutes, 20 mm Dia Shank, 150 mm OAL, Uncoated
Invoice description:
Bem 20x75locx20x150mm 2fl N/c Xl
Factory Order
GARR End Mill, Ball End Center Cutting Extra Length, Series: 740M, 20 mm Diameter Cutter, 150 mm Overall Length, 75 mm Length of Cut, 2 Flutes, Spiral Flute, 20 mm Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, 75 mm Shank Length, Solid Submicron Carbide, Uncoated
Features
- Extended reach
- Can be modified with a neck
- Extremely versatile
- Ball radius tolerance +0.000 to 0.001 in (+0.000 to 0.025 mm)
Specifications
Cutter Diameter20 mm
Cutting DirectionRight Hand
FinishUncoated
Flute TypeSpiral
Helix Angle30 deg
Length of Cut75 mm
MaterialSolid Submicron Carbide
Number of Flutes2
Overall Length150 mm
Series740M
Shank Diameter20 mm
Shank Length75 mm
TypeBall End Center Cutting Extra Length
Additional Information
Country of OriginUS
Specification Sheet
