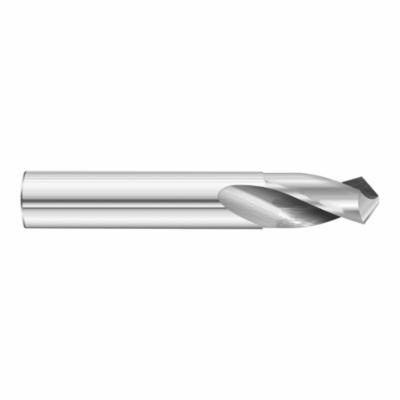

Fullerton FULLT 16028

Fullerton 16028 1510 General Purpose Single End Stub Length Screw Machine Drill, #40 Drill - Wire, 0.098 in Drill - Decimal Inch, Dura-Carb, Uncoated

UNSPSC:
Manufacturer PN: 16028
Factory Order
QTY:


Fullerton Screw Machine Drill, General Purpose Single End Stub Length, Series: 1510, Imperial, #40 Drill - Wire, 0.098 in Drill - Decimal Inch, 2 in Overall Length, 5XD Cutting Depth, 2 Flutes, Right Spiral Flute, 5/8 in Flute Length, 0.098 in Shank, Round Shank, 118 deg Point, 4-Facet Point, Right Hand Cutting Direction, Dura-Carb Cutting Edge, Dura-Carb, Uncoated, Applicable Materials: Brass, Cast Iron, Copper, Composite, Graphite, Hardened Steel, High Silicon Aluminum, Low Silicon Aluminum, Plastic, Stainless Steel, Steel, Titanium and Wood

  • Features

  • +0.0000 in, -0.0015 in/+0.000 mm, -0.038 mm shank diameter tolerance
  • +0.0000 in, -0.0005 in/+0.000 mm, -0.013 mm cutter diameter tolerance
  • 25 deg helix

Specifications

ApplicationAerospace, Firearms, Small Engine, Recreational, Power Generation, Mold and Die, Medical, Heavy Equipment and Automotive
Applicable MaterialsBrass, Cast Iron, Copper, Composite, Graphite, Hardened Steel, High Silicon Aluminum, Low Silicon Aluminum, Plastic, Stainless Steel, Steel, Titanium and Wood
Cutting Depth5XD
Cutting DirectionRight Hand
Cutting Edge MaterialDura-Carb
Drill Diameter Measurement SystemImperial
Drill Size - Decimal Inch0.098 in
Drill Size - Wire#40
FinishUncoated
Flute Length5/8 in
Flute TypeRight Spiral
MaterialDura-Carb
Number of Flutes2
Overall Length2 in
Point Angle118 deg
Point Type4-Facet
Series1510
Shank Size0.098 in
Shank TypeRound
TypeGeneral Purpose Single End Stub Length
