Fullerton FULLT 15048

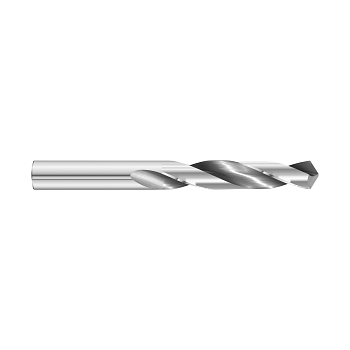

Fullerton 15048 1510 General Purpose Single End Standard Length Jobber Length Drill Bit, 3/32 in Drill - Fraction, 0.0938 in Drill - Decimal Inch, 118 deg Point, Dura-Carb, Uncoated

Invoice description: Drill .0938x1x2 118d

UNSPSC: 23241605
Manufacturer PN: 15048
$15.76 EA
Factory Order
Estimated to ship in 7 days
QTY:


Fullerton Jobber Length Drill Bit, General Purpose Single End Standard Length, Series: 1510, Imperial, 3/32 in Drill - Fraction, 0.0938 in Drill - Decimal Inch, 2 in Overall Length, 1 in Cutting Depth, 2 Flutes, Spiral Flute, 1 in Flute Length, 3/32 in Shank, 118 deg Point, Four Facet Point, Right Hand Cutting Direction, Dura-Carb Cutting Edge, No Through Coolant, Dura-Carb, Uncoated, Applicable Materials: High Silicon Aluminum, Low Silicon Aluminum, Brass, Copper, Graphite, Cast Iron, Hardened Steel, Stainless Steel, Steel, Titanium, Composites and Wood

  • Features

  • +0.0000 in, -0.0015 in/+0.000 mm, -0.038 mm shank diameter tolerance
  • +0.0000 in, -0.0005 in/+0.000 mm, -0.013 mm cutter diameter tolerance
  • 25 deg helix

Specifications

ApplicationFor screw machine and swiss lathe applications
Applicable MaterialsHigh Silicon Aluminum, Low Silicon Aluminum, Brass, Copper, Graphite, Cast Iron, Hardened Steel, Stainless Steel, Steel, Titanium, Composites and Wood
Cutting Depth1 in
Cutting DirectionRight Hand
Cutting Edge MaterialDura-Carb
Drill Diameter Measurement SystemImperial
Drill Size - Decimal Inch0.0938 in
Drill Size - Fraction3/32 in
FinishUncoated
Flute Length1 in
Flute TypeSpiral
MaterialDura-Carb
Number of Flutes2
Overall Length2 in
Point Angle118 deg
Point TypeFour Facet
Series1510
Shank Size3/32 in
Through Coolant (Yes/No)No
TypeGeneral Purpose Single End Standard Length

Additional Information

Standards/ApprovalISO-9001:2008
Country of OriginUS
