Fullerton FULLT 13069

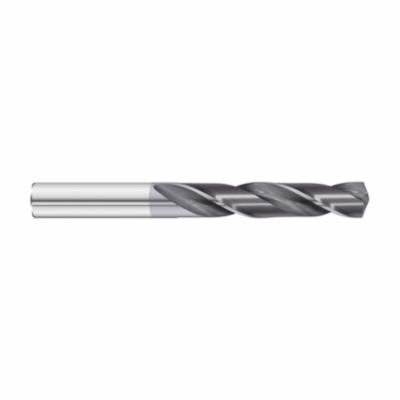

Fullerton 13069 1500 General Purpose Single End Standard Length Jobber Length Drill Bit, 11/64 in Drill - Fraction, 0.1719 in Drill - Decimal Inch, 135 deg Point, Dura-Carb, FC7 Coated

UNSPSC: 23241605
Manufacturer PN: 13069
$35.34 EA
Factory Order
Estimated to ship in 14 days
QTY:


Fullerton Jobber Length Drill Bit, General Purpose Single End Standard Length, Series: 1500, Imperial, 11/64 in Drill - Fraction, 0.1719 in Drill - Decimal Inch, 2-3/4 in Overall Length, 1-5/8 in Cutting Depth, 2 Flutes, Spiral Flute, 1-5/8 in Flute Length, 11/64 in Shank, 135 deg Point, Notched Cam Point, Right Hand Cutting Direction, Dura-Carb Cutting Edge, No Through Coolant, Dura-Carb, FC7 Coated, Applicable Materials: High Silicon Aluminum, Low Silicon Aluminum, Brass, Copper, Graphite, Cast Iron, Hardened Steel, Stainless Steel, Steel, Titanium, Composites, Plastics and Wood

  • Features

  • +0.0000 in, -0.0015 in/+0.000 mm, -0.038 mm shank diameter tolerance
  • +0.0000 in, -0.0005 in/+0.000 mm, -0.013 mm cutter diameter tolerance
  • 30 deg helix

Specifications

Applicable MaterialsHigh Silicon Aluminum, Low Silicon Aluminum, Brass, Copper, Graphite, Cast Iron, Hardened Steel, Stainless Steel, Steel, Titanium, Composites, Plastics and Wood
Cutting Depth1-5/8 in
Cutting DirectionRight Hand
Cutting Edge MaterialDura-Carb
Drill Diameter Measurement SystemImperial
Drill Size - Decimal Inch0.1719 in
Drill Size - Fraction11/64 in
FinishFC7 Coated
Flute Length1-5/8 in
Flute TypeSpiral
MaterialDura-Carb
Number of Flutes2
Overall Length2-3/4 in
Point Angle135 deg
Point TypeNotched Cam
Series1500
Shank Size11/64 in
Through Coolant (Yes/No)No
TypeGeneral Purpose Single End Standard Length
