GARR GARR 83310

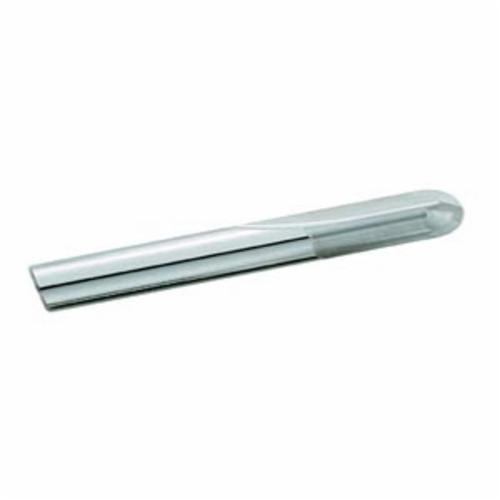

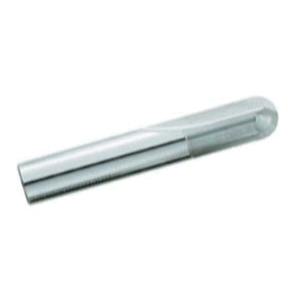

GARR 83310 Ball End Center Cutting Single End Standard Length End Mill, 1/2 in Dia Cutter, 1 in Length of Cut, 2 Flutes, 1/2 in Dia Shank, 3 in OAL, Uncoated
Invoice description:
Bem 1/2x1locx1/2x3 2fl N/c
Factory Order
GARR End Mill, Ball End Center Cutting Single End Standard Length, Series: 322M, 1/2 in Diameter Cutter, 3 in Overall Length, 1 in Length of Cut, 2 Flutes, Straight Flute, 1/2 in Shank Diameter, Right Hand Cutting Direction, 2 in Shank Length, Solid Submicron Carbide, Uncoated
Features
- For cutting high Rockwell materials
- Helps to hold perpendicularity
- Ball radius tolerance +0.000 to 0.001 in (+0.000 to 0.025 mm)
Specifications
ApplicationFor cutting high rockwell materials
Cutter Diameter1/2 in
Cutting DirectionRight Hand
FinishUncoated
Flute TypeStraight
Length of Cut1 in
MaterialSolid Submicron Carbide
Number of Flutes2
Overall Length3 in
Series322M
Shank Diameter1/2 in
Shank Length2 in
TypeBall End Center Cutting Single End Standard Length
Additional Information
Country of OriginUS
Specification Sheet
