Dixon DIXV 61-105

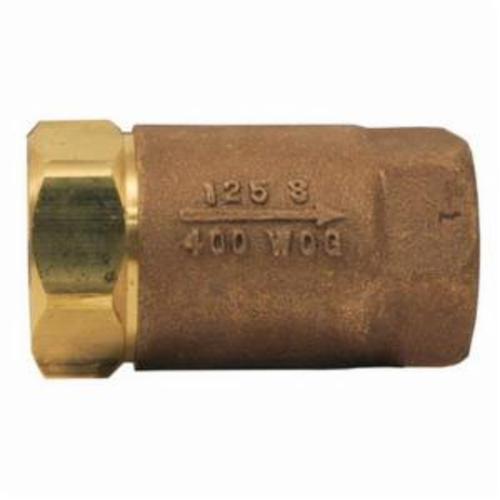

Dixon 61-105 Ball Cone Check Valve, 1 in Nominal, FNPT Connection End Style, Brass Body, PTFE Seat Softgoods, Domestic

Invoice description: 1" Ball Cone Check Valve

UNSPSC: 40141618
Manufacturer PN: 61-105
$135.84 EA
Factory Order
Estimated to ship in 7 days
QTY:


Dixon Ball Cone Check Valve, 1 in Nominal, FNPT Connection End Style, 400 psi WOG, 125 psi WSP Pressure, -20 to 353 deg F, Media: Gas/Oil/Steam/Water, Brass Body, PTFE Seat Softgoods, 3-1/2 in L x 1-15/16 in W Dimensions, Domestic

  • Features

  • Tight shut-off with liquid media
  • No radial alignment necessary
  • Straight through and streamlined for minimum change in velocity
  • Reinforced PTFE check is spring loaded for fast seating action
  • 0.5 psi cracking pressure
  • 1-3/4 in hex

Specifications

ApplicationFor domestic applications
Body MaterialBrass
Dimensions3-1/2 in L x 1-15/16 in W
Domestic/ImportDomestic
End StyleFNPT Connection
MediaGas/Oil/Steam/Water
Nominal Size1 in
Pressure Rating400 psi WOG, 125 psi WSP
Softgoods MaterialPTFE Seat
Temperature Rating-20 to 353 deg F

Additional Information

Country of OriginUS
