GARR GARR 61118

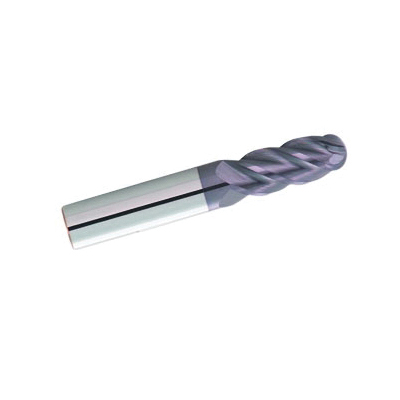

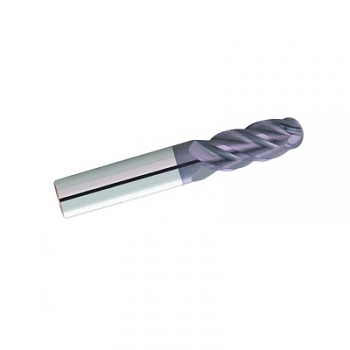

GARR 61118 VB VRX Center Cutting High Performance Ball End Mill, 2 mm Dia Cutter, 8 mm Length of Cut, 4 Flutes, 3 mm Dia Shank, 38 mm OAL, AlTiN Coated
Invoice description:
Bem 2x8locx3x38mm 4fl Altin Hp
Factory Order
GARR Ball End Mill, Center Cutting High Performance, Series: VB VRX, 2 mm Cutter Dia, 38 mm Overall Length, 8 mm Length of Cut, 4 Flutes, Spiral Flute, 3 mm Shank Dia, Right Hand Cutting, 41 deg Helix Angle, Plain Shank, Solid Submicron Grain Carbide, AlTiN Coated
Features
- The standard in high performance milling
- Reduces vibration for more aggressive machining
- +0.000 to 0.001 in ball radius tolerance
- For stainless steel, inconel, pH materials, titanium and tool steel
Specifications
ApplicationTrochoidal/Dynamic Milling
Cutter Diameter2 mm
Cutting DirectionRight Hand
FinishAlTiN Coated
Flute TypeSpiral
Helix Angle41 deg
Length of Cut8 mm
MaterialSolid Submicron Grain Carbide
Number of Flutes4
Overall Length38 mm
SeriesVB VRX
Shank Diameter3 mm
Shank TypePlain
TypeCenter Cutting High Performance
Additional Information
Standards/ApprovalPROP65: This product can expose you to chemicals including cobalt, which is known to the State of California to cause cancer. For more information go towww.P65Warnings.ca.gov
Country of OriginUS
Sds
