GARR GARR 55794

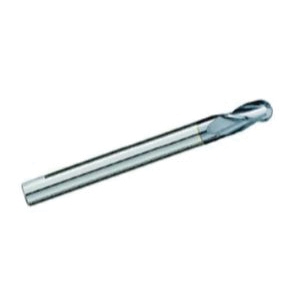

GARR 55794 Ball Nose Center Cutting Extra Length End Mill, 9/16 in Dia Cutter, 3 in Length of Cut, 3 Flutes, 9/16 in Dia Shank, 6 in OAL, TiCN Coated

Invoice description: Bem 9/16x3locx9/16x6 3fl Ticn Xl

UNSPSC: 27112803
Manufacturer PN: 55794
$118.80 EA
Factory Order
Estimated to ship in 7 days
QTY:


GARR End Mill, Ball Nose Center Cutting Extra Length, Series: 723MC, 9/16 in Cutter Dia, 6 in Overall Length, 3 in Length of Cut, 3 Flutes, Helix Flute, 9/16 in Shank Dia, Right Hand Cutting, 30 deg Helix Angle, Submicron Solid Carbide, TiCN Coated

  • Features

  • Extended reach
  • Improved abrasion resistance and lubricity
  • Up to 25% faster than uncoated
  • Can be modified with a neck
  • Extremely versatile
  • Ball radius tolerance +0.000 to 0.001 in (+0.000 to 0.025 mm)

Specifications

Cutter Diameter9/16 in
Cutting DirectionRight Hand
FinishTiCN Coated
Flute TypeHelix
Helix Angle30 deg
Length of Cut3 in
MaterialSubmicron Solid Carbide
Number of Flutes3
Overall Length6 in
Series723MC
Shank Diameter9/16 in
TypeBall Nose Center Cutting Extra Length

Additional Information

Country of OriginUS
