GARR GARR 50576

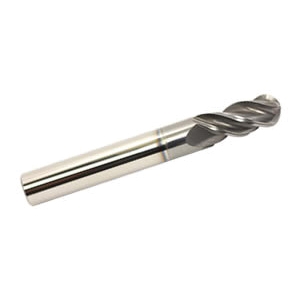

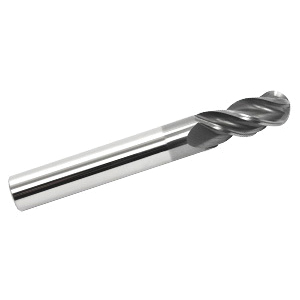

GARR 50576 V4B Ball End Center Cutting Variable Helix End Mill, 12 mm Dia Cutter, 42 mm Length of Cut, 4 Flutes, 12 mm Dia Shank, 100 mm OAL, AlCrN Coated
Invoice description:
Bem 12x42locx12x100mm 4fl Alcrn Var
Factory Order
GARR End Mill, Ball End Center Cutting Variable Helix, Series: V4B, 12 mm Diameter Cutter, 100 mm Overall Length, 42 mm Length of Cut, 4 Flutes, Spiral Flute, 12 mm Shank Diameter, Right Hand Cutting Direction, Plain Shank, Submicron Solid Carbide, AlCrN Coated
Features
- For titanium, inconel and steels <40 RC
- Special edge prep enhances tool life by 20%
- Minimizes burr on part
- Helix geometry varies over length of flutes
- Variable flute design helps with chip evacuation
- Variable rake aids in chip formation
- Ball radius tolerance +0.000 to 0.001 in (+0.000 to 0.025 mm)
- PCT (polish carbide treatment) enhances tool life by 20%
Specifications
ApplicationFor titanium, inconel and steels <40Rc
Cutter Diameter12 mm
Cutting DirectionRight Hand
FinishAlCrN Coated
Flute TypeSpiral
Length of Cut42 mm
MaterialSubmicron Solid Carbide
Number of Flutes4
Overall Length100 mm
SeriesV4B
Shank Diameter12 mm
Shank TypePlain
TypeBall End Center Cutting Variable Helix
Additional Information
Country of OriginUS
Specification Sheet
