SGS SGS 70482

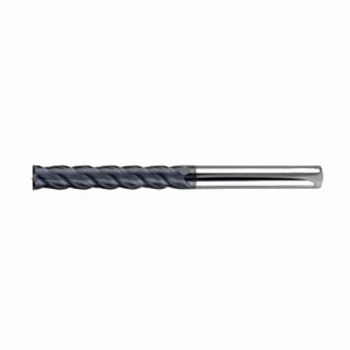

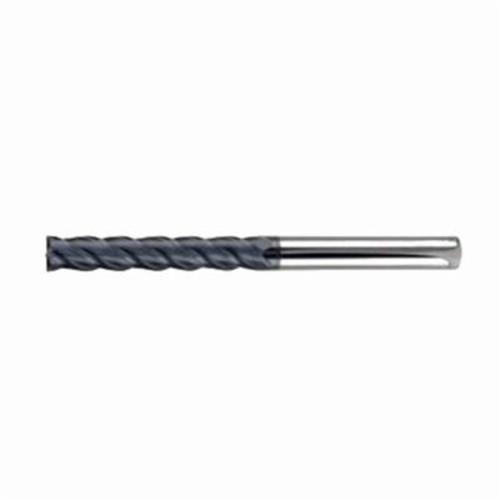

SGS® 70482 7S Fractional High Performance Square End High Performance End Mill, 1/2 in Dia Cutter, 2 in Length of Cut, 4 Flutes, 1/2 in Dia Shank, 4-1/2 in OAL, TX Coated

UPC: 691781704821
UNSPSC: 23242511
Manufacturer PN: 70482
$140.98 EA
Factory Order
Estimated to ship in 7 days
QTY:


SGS® High Performance End Mill, Fractional High Performance Square End, Series: 7S, 1/2 in Diameter Cutter, 4-1/2 in Overall Length, 2 in Length of Cut, 4 Flutes, Spiral Flute, 1/2 in Shank Diameter, Right Hand Cutting Direction, 38 deg Helix Angle, Straight Shank, 2-1/2 in Shank Length, Micrograin Solid Carbide, TX Coated

  • Features

  • Variable pitch allows for improved chatter suppression along with improved surface finish and enhanced tool life
  • Raised land and increased core diameter designed to enhance tool life and decrease tool deflection

Specifications

ApplicationAerospace, Automotive, Castings and Foundries, General Engineering, Medical, Mold and Die and Power Generation
TypeFractional High Performance Square End
Series7S
Cutter Diameter1/2 in
Overall Length4-1/2 in
Length of Cut2 in
Number of Flutes4
Flute TypeSpiral
Shank Diameter1/2 in
Cutting DirectionRight Hand
Helix Angle38 deg
