SGS SGS 36596

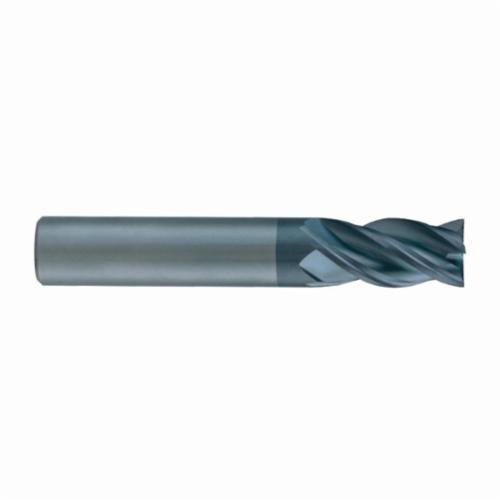

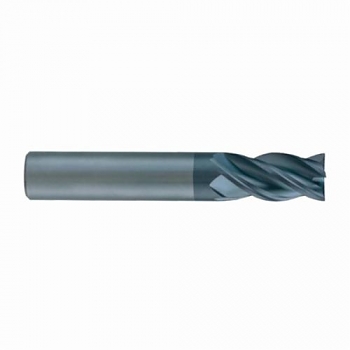

SGS 36596 Z1S Fractional High Performance Square End High Performance End Mill, 1/4 in Dia Cutter, 3/4 in Length of Cut, 4 Flutes, 1/4 in Dia Shank, 2-1/2 in OAL, TA Coated
Invoice description:
End Mill 1/4x3/4x2-1/2 Z-carb,4-fl
UPC: 691781365961
UNSPSC:
23242511
Manufacturer PN: 36596
$40.52 EA
Factory OrderEstimated to ship in 7 days
SGS High Performance End Mill, Fractional High Performance Square End, Series: Z1S, 1/4 in Diameter Cutter, 2-1/2 in Overall Length, 3/4 in Length of Cut, 4 Flutes, Spiral Flute, 1/4 in Shank Diameter, Right Hand Cutting Direction, 35 to 38 deg Helix Angle, Straight Shank, 1-3/4 in Shank Length, Micrograin Solid Carbide, TA Coated
Features
- Unequal helix design aids in damaging harmonics by changing the angle at which each cutting edge enters and exits the material
- Unequal flute spacing helps to disrupt the rhythmic pattern created by the cutting edge helping to suppress damaging harmonics
- Optimal material removal rates through increased feed and depths of cut
- Enhanced corner geometry with tight tolerance corner radii
- Recommended for materials 45 HRc (420 Bhn)
Specifications
ApplicationAerospace, Automotive, Castings and Foundries, General Engineering, Medical, Mold and Die and Power Generation
Cutter Diameter1/4 in
Cutting DirectionRight Hand
FinishTA Coated
Flute TypeSpiral
Helix Angle35 to 38 deg
Length of Cut3/4 in
MaterialMicrograin Solid Carbide
Number of Flutes4
Overall Length2-1/2 in
SeriesZ1S
Shank Diameter1/4 in
Shank Length1-3/4 in
Shank TypeStraight
TypeFractional High Performance Square End
Additional Information
Country of OriginUS
