SGS SGS 32659

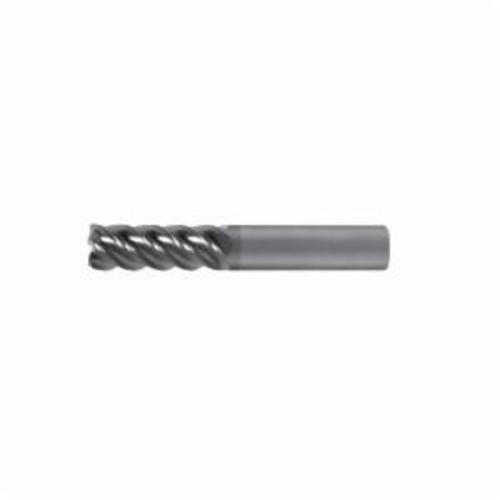

SGS 32659 55S Fractional High Performance Square End High Performance End Mill, 1/4 in Dia Cutter, 3/4 in Length of Cut, 5 Flutes, 1/4 in Dia Shank, 2-1/2 in OAL, TA Coated

Invoice description: End Mill 1/4x3/4x2-1/2 5-fl V-carb

UPC: 691781326597
UNSPSC: 23242511
Manufacturer PN: 32659
$47.42 EA
Factory Order
Estimated to ship in 7 days
QTY:


SGS High Performance End Mill, Fractional High Performance Square End, Series: 55S, 1/4 in Diameter Cutter, 2-1/2 in Overall Length, 3/4 in Length of Cut, 5 Flutes, Spiral Flute, 1/4 in Shank Diameter, Right Hand Cutting Direction, 45 deg Helix Angle, Straight Shank, 1-3/4 in Shank Length, Micrograin Solid Carbide, TA Coated

  • Features

  • Unequal indexing, high helix and an ideal rake and relief combination for unmatched finishing capability
  • The choice when peak finish quality is the requirement
  • Enhanced corner geometry with tight tolerance corner radii
  • Recommended for materials 45 HRc (420 Bhn)

Specifications

ApplicationAerospace, Automotive, Castings and Foundries, General Engineering, Medical, Mold and Die and Power Generation
Cutter Diameter1/4 in
Cutting DirectionRight Hand
FinishTA Coated
Flute TypeSpiral
Helix Angle45 deg
Length of Cut3/4 in
MaterialMicrograin Solid Carbide
Number of Flutes5
Overall Length2-1/2 in
Series55S
Shank Diameter1/4 in
Shank Length1-3/4 in
Shank TypeStraight
TypeFractional High Performance Square End

Additional Information

Country of OriginUS
