SGS SGS 05280

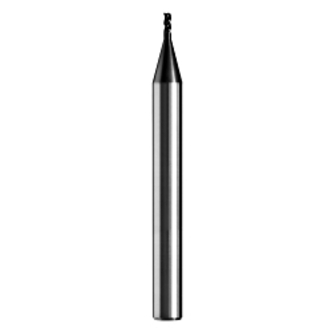

SGS 05280 M032 Fractional Long Reach/Regular/Stub Length Square End Mill, 0.0469 in Dia Cutter, 0.141 in Length of Cut, 3 Flutes, 1/4 in Dia Shank, 2-1/2 in OAL, Ti-NAMITE-A Coated

Invoice description: 3/64 Endmill 3fl Sq Ta S Er M032 3/64x1/4x9/64

UPC: 691781052809
UNSPSC: 23242511
Manufacturer PN: 05280
$36.00 EA
Factory Order
Estimated to ship in 14 days
QTY:


SGS Square End Mill, Fractional Long Reach/Regular/Stub Length, Series: M032, 0.0469 in Diameter Cutter, 2-1/2 in Overall Length, 0.141 in Length of Cut, 3 Flutes, Spiral Flute, 1/4 in Shank Diameter, Right Hand Cutting Direction, 35 to 45 deg Helix Angle, Common Shank, Submicron Grain Carbide, Ti-NAMITE-A Coated

  • Features

  • Variable helix design improves stability, extends tool life and improves part quality in challenging applications
  • Reinforced shank maximizes rigidity, especially in applications requiring additional tool extension
  • Proprietary coating allows for superior chip flow, driving industry leading productivity and value, even at low spindle speeds
  • Application specific sub micron grain carbide designed specifically for micro tool applications
  • Manufactured in accordance with KSPT ISO certified quality procedures

Specifications

ApplicationAerospace, Automotive, Casting and Foundries, Medical, Mold and Die, General Engineering and Power Generation Applications
Cutter Diameter0.0469 in
Cutting DirectionRight Hand
FinishTi-NAMITE-A Coated
Flute TypeSpiral
Helix Angle35 to 45 deg
Length of Cut0.141 in
MaterialSubmicron Grain Carbide
Number of Flutes3
Overall Length2-1/2 in
SeriesM032
Shank Diameter1/4 in
Shank TypeCommon
TypeFractional Long Reach/Regular/Stub Length

Additional Information

Standards/ApprovalPROP65: This product can expose you to chemicals i
Country of OriginUS

Documents
