GARR GARR 50050

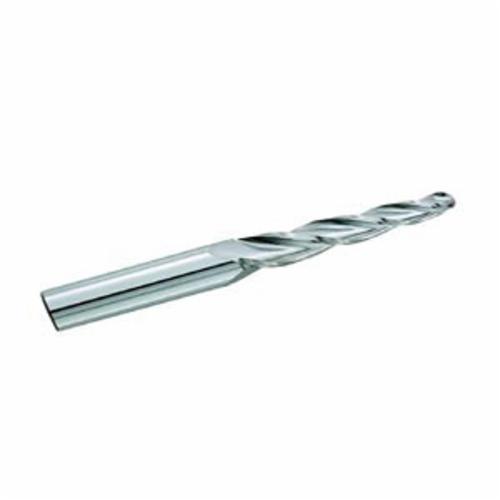

GARR 50050 373M Ball End Center Cutting Standard Length Tapered End Mill, 0.062 in Dia Cutter, 3/4 in Length of Cut, 3 Flutes, 1/4 in Dia Shank, 3 in OAL, Uncoated

Invoice description: Tbem 0.062x3/4locx1/4x3 3fl N/c

UNSPSC: 23242511
Manufacturer PN: 50050
$45.92 EA
Factory Order
Estimated to ship in 7 days
QTY:


GARR Tapered End Mill, Center Cutting Single Ball End, Series: 373M, 1/4 in Diameter Cutter, 3 in Overall Length, 3/4 in Length of Cut, 3 Flutes, Spiral Flute, 1/4 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, 2-1/4 in Shank Length, Solid Submicron Grain Carbide, Uncoated

  • Features

  • Excellent for holding draft angles in die and mold applications
  • 5 deg taper per side

Specifications

ApplicationFor holding draft angles in mold and die applications
Cutter Diameter0.062 in
Cutting DirectionRight Hand
FinishUncoated
Flute TypeSpiral
Helix Angle30 deg
Length of Cut3/4 in
MaterialSolid Submicron Carbide
Number of Flutes3
Overall Length3 in
Series373M
Shank Diameter1/4 in
Shank Length2-1/4 in
TypeBall End Center Cutting Standard Length

Additional Information

Country of OriginUS
