GARR GARR 50010

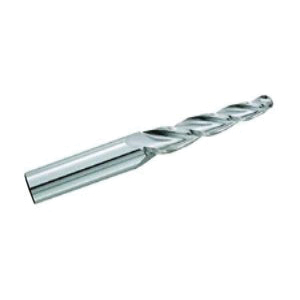

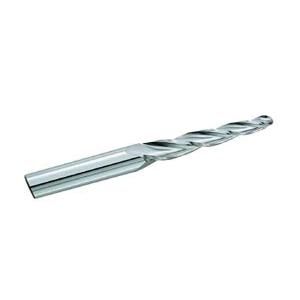

GARR 50010 373M Ball End Center Cutting Tapered End Mill, 1/4 in Dia Cutter, 1-1/2 in Length of Cut, 3 Flutes, 1/4 in Dia Shank, 3 in OAL, Uncoated

Invoice description: Tbem 1/4x1-1/2locx1/4x3 3fl N/c

UNSPSC: 27112803
Manufacturer PN: 50010
$45.92 EA
Factory Order
Estimated to ship in 7 days
QTY:


GARR End Mill, Ball End Center Cutting Tapered, Series: 373M, 1/4 in Diameter Cutter, 3 in Overall Length, 1-1/2 in Length of Cut, 3 Flutes, Helix Flute, 1/4 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Submicron Premium Carbide, Uncoated

  • Features

  • Excellent for holding draft angles in die and mold applications
  • 1 deg taper per side

Specifications

ApplicationFor holding draft angles in die and mold applications
Cutter Diameter1/4 in
Cutting DirectionRight Hand
FinishUncoated
Flute TypeHelix
Helix Angle30 deg
Length of Cut1-1/2 in
MaterialSubmicron Premium Carbide
Number of Flutes3
Overall Length3 in
Series373M
Shank Diameter1/4 in
TypeBall End Center Cutting Tapered

Additional Information

Country of OriginUS
