GARR GARR 44134

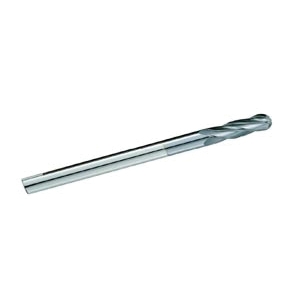

GARR 44134 730MC Ball Nose Center Cutting Extra Length End Mill, 5/16 in Dia Cutter, 1-5/8 in Length of Cut, 4 Flutes, 5/16 in Dia Shank, 4 in OAL, TiCN Coated

Invoice description: Bem 5/16x1-5/8locx5/16x4 4fl Ticn Xl

UNSPSC: 27112803
Manufacturer PN: 44134
$63.34 EA
Factory Order
Estimated to ship in 7 days
QTY:


GARR End Mill, Ball Nose Center Cutting Extra Length, 5/16 in Cutter Dia, 4 in Overall Length, 1-5/8 in Length of Cut, 4 Flutes, Helix Flute, 5/16 in Shank Dia, Right Hand Cutting, 30 deg Helix Angle, Submicron Solid Carbide, TiCN Coated

  • Features

  • Extended reach
  • Improved abrasion resistance and lubricity
  • Can be modified with a neck
  • Up to 25% faster than uncoated
  • Extremely versatile
  • Ball radius tolerance +0.000 to 0.001 in (+0.000 to 0.025 mm)

Specifications

Cutter Diameter5/16 in
Cutting DirectionRight Hand
FinishTiCN Coated
Flute TypeHelix
Helix Angle30 deg
Length of Cut1-5/8 in
MaterialSubmicron Solid Carbide
Number of Flutes4
Overall Length4 in
Series730MC
Shank Diameter5/16 in
TypeBall Nose Center Cutting Extra Length

Additional Information

Country of OriginUS
