GARR GARR 43382

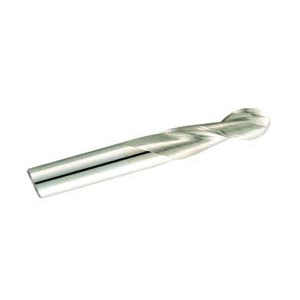

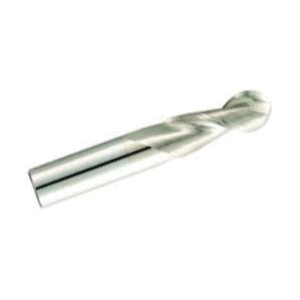

GARR 43382 142B Ball End Center Cutting Ball End Mill, 16 mm Dia Cutter, 40 mm Length of Cut, 2 Flutes, 16 mm Dia Shank, 100 mm OAL, Alumastar Coated
Invoice description:
Bem 16x40locx16x100mm 2fl Alum
Factory Order
GARR Ball End Mill, Ball End Center Cutting, Series: 142B, 16 mm Diameter Cutter, 100 mm Overall Length, 40 mm Length of Cut, 2 Flutes, Spiral Flute, 16 mm Shank Diameter, Right Hand Cutting Direction, 41 deg Helix Angle, Submicron Solid Carbide, Alumastar Coated
Features
- Specific coating engineered to repel aluminum
- Engineered to run at 750 to 2500 SFM
- For high speed machining of aluminum
- High velocity - high metal removal rate
- Use properly balanced holders
- Holds perpendicularity
- Flats can be added within 48 hr for a nominal charge
- Ball radius tolerance is +0.0000 to 0.0005 in (+0.0000 to 0.0127 mm)
Specifications
ApplicationFor high speed machining of aluminum
Cutter Diameter16 mm
Cutting DirectionRight Hand
FinishAlumastar Coated
Flute TypeSpiral
Helix Angle41 deg
Length of Cut40 mm
MaterialSubmicron Solid Carbide
Number of Flutes2
Overall Length100 mm
Series142B
Shank Diameter16 mm
TypeBall End Center Cutting
Additional Information
Country of OriginUS
Specification Sheet
