GARR GARR 43044

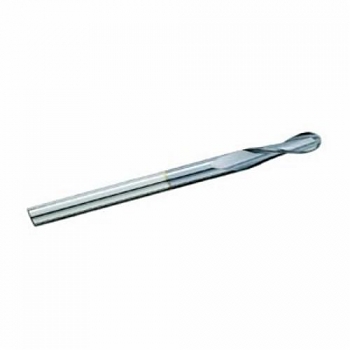

GARR 43044 720MC Ball End Center Cutting Extra Length End Mill, 3/16 in Dia Cutter, 1 in Length of Cut, 2 Flutes, 3/16 in Dia Shank, 3 in OAL, TiCN Coated
Factory Order
GARR End Mill, Ball End Center Cutting Extra Length, Series: 720MC, 3/16 in Cutter Dia, 3 in Overall Length, 1 in Length of Cut, 2 Flutes, Spiral Flute, 3/16 in Shank Dia, Right Hand Cutting, 30 deg Helix Angle, 2 in Shank Length, Solid Submicron Carbide, TiCN Coated
Features
- Extended reach
- Improved abrasion resistance and lubricity
- Up to 25% faster than uncoated
- Can be modified with a neck
- Extremely versatile
- Ball radius tolerance +0.000 to 0.001 in (+0.000 to 0.025 mm)
Specifications
Cutter Diameter3/16 in
Cutting DirectionRight Hand
FinishTiCN Coated
Flute TypeSpiral
Helix Angle30 deg
Length of Cut1 in
MaterialSolid Submicron Carbide
Number of Flutes2
Overall Length3 in
Series720MC
Shank Diameter3/16 in
Shank Length2 in
TypeBall End Center Cutting Extra Length
Specification Sheet
