GARR GARR 43024

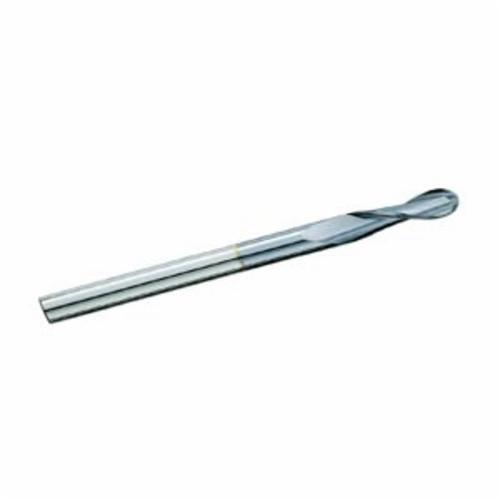

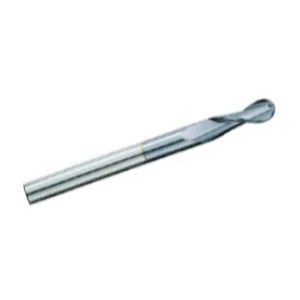

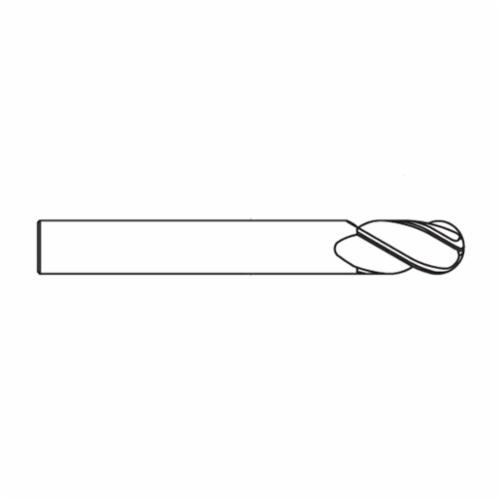

GARR 43024 720MC Ball End Center Cutting Extra Length End Mill, 1/8 in Dia Cutter, 3/4 in Length of Cut, 2 Flutes, 1/8 in Dia Shank, 3 in OAL, TiCN Coated
Invoice description:
Bem 1/8x3/4locx1/8x3 2fl Ticn Xl
Factory Order
GARR End Mill, Ball End Center Cutting Extra Length, Series: 105, 1/8 in Cutter Dia, 3 in Overall Length, 3/4 in Length of Cut, 2 Flutes, Spiral Flute, 1/8 in Shank Dia, Right Hand Cutting, 30 deg Helix Angle, 2-1/4 in Shank Length, Solid Submicron Carbide, TiCN Coated
Features
- Extended reach
- Improved abrasion resistance and lubricity
- Up to 25% faster than uncoated
- Can be modified with a neck
- Extremely versatile
- Ball radius tolerance +0.000 to 0.001 in (+0.000 to 0.025 mm)
Specifications
Cutter Diameter1/8 in
Cutting DirectionRight Hand
FinishTiCN Coated
Flute TypeSpiral
Helix Angle30 deg
Length of Cut3/4 in
MaterialSolid Submicron Carbide
Number of Flutes2
Overall Length3 in
Series720MC
Shank Diameter1/8 in
Shank Length2-1/4 in
TypeBall End Center Cutting Extra Length
Additional Information
Country of OriginUS
Specification Sheet
