GARR GARR 43017

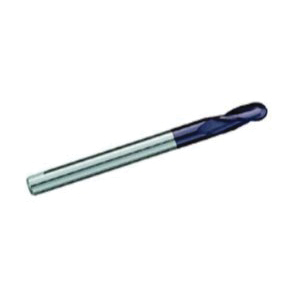

GARR 43017 720MA Ball End Center Cutting Extra Length Ball End Mill, 1/8 in Dia Cutter, 5/8 in Length of Cut, 2 Flutes, 1/8 in Dia Shank, 2 in OAL, TiALN Coated
Factory Order
GARR Ball End Mill, Center Cutting Extra Length, Series: 720MA, 1/8 in Diameter Cutter, 2 in Overall Length, 5/8 in Length of Cut, 2 Flutes, Spiral Flute, 1/8 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, 1-3/8 in Shank Length, Solid Submicron Grain Carbide, TiAlN Coated
Features
- Extended reach
- Can be modified with a neck
- Extremely versatile
- Up to 40% faster than uncoated
- Ball radius tolerance +0.000 to 0.001 in (+0.000 to 0.025 mm)
Specifications
ApplicationDry or Semi-Dry Machining
Cutter Diameter1/8 in
Cutting DirectionRight Hand
FinishTiALN Coated
Flute TypeSpiral
Helix Angle30 deg
Length of Cut5/8 in
MaterialSolid Submicron Carbide
Number of Flutes2
Overall Length2 in
Series720MA
Shank Diameter1/8 in
Shank Length1-3/8 in
TypeBall End Center Cutting Extra Length
Specification Sheet
