GARR GARR 40178

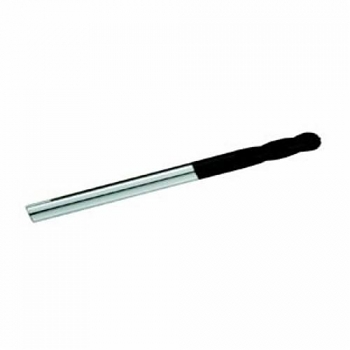

GARR 40178 710D Ball End Center Cutting Extra Length High Performance End Mill, 1/2 in Dia Cutter, 2 in Length of Cut, 4 Flutes, 1/2 in Dia Shank, 4 in OAL, Crystalline Diamond Coated

UNSPSC: 23242511
Manufacturer PN: 40178
$328.32 EA
Factory Order
Estimated to ship in 7 days
QTY:


GARR High Performance End Mill, Ball End Center Cutting Extra Length, Series: VDS401F, 1/2 in Cutter Dia, 4 in Overall Length, 2 in Length of Cut, 4 Flutes, Spiral Flute, 1/2 in Shank Dia, Right Hand Cutting, 30 deg Helix Angle, 2 in Shank Length, Solid Grade C-2 Carbide, Crystalline Diamond Coated

  • Features

  • Up to 17 times tool life versus uncoated end mills
  • For graphite, fiber reinforced plastics, carbon fiber and high silicon aluminum
  • Ball radius tolerance +0.000 to 0.001 in (+0.000 to 0.025 mm)

Specifications

Cutter Diameter1/2 in
Cutting DirectionRight Hand
FinishCrystalline Diamond Coated
Flute TypeSpiral
Helix Angle30 deg
Length of Cut2 in
MaterialSolid Grade C-2 Carbide
Number of Flutes4
Overall Length4 in
Series710D
Shank Diameter1/2 in
Shank Length2 in
TypeBall End Center Cutting Extra Length
