GARR GARR 40038

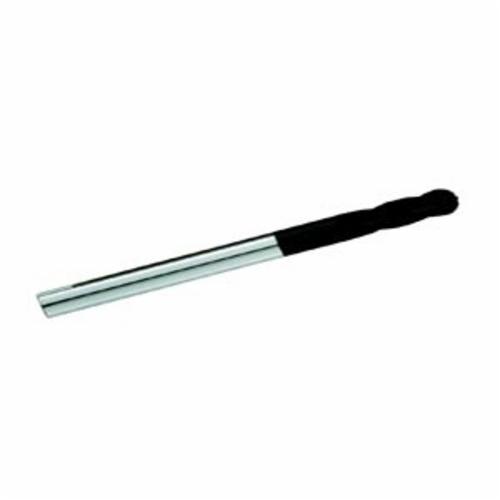

GARR 40038 710D Ball End Center Cutting Extra Length High Performance End Mill, 1/8 in Dia Cutter, 1 in Length of Cut, 4 Flutes, 1/8 in Dia Shank, 3 in OAL, Crystalline Diamond Coated

UNSPSC: 23242511
Manufacturer PN: 40038
$154.50 EA
Factory Order
Estimated to ship in 7 days
QTY:


GARR High Performance End Mill, Ball End Center Cutting Extra Length, Series: R18, 1/8 in Cutter Dia, 3 in Overall Length, 1 in Length of Cut, 4 Flutes, Spiral Flute, 1/8 in Shank Dia, Right Hand Cutting, 30 deg Helix Angle, 2 in Shank Length, Solid Grade C-2 Carbide, Crystalline Diamond Coated

  • Features

  • Up to 17 times tool life versus uncoated end mills
  • For graphite, fiber reinforced plastics, carbon fiber and high silicon aluminum
  • Ball radius tolerance +0.000 to 0.001 in (+0.000 to 0.025 mm)

Specifications

Cutter Diameter1/8 in
Cutting DirectionRight Hand
FinishCrystalline Diamond Coated
Flute TypeSpiral
Helix Angle30 deg
Length of Cut1 in
MaterialSolid Grade C-2 Carbide
Number of Flutes4
Overall Length3 in
Series710D
Shank Diameter1/8 in
Shank Length2 in
TypeBall End Center Cutting Extra Length
