GARR GARR 36060

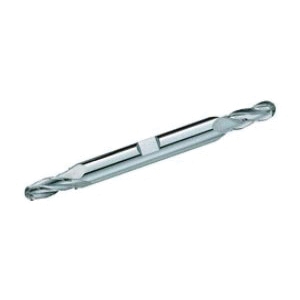

GARR 36060 Ball Nose Center Cutting Double End End Mill, 9/32 in Dia Cutter, 11/16 in Length of Cut, 4 Flutes, 3/8 in Dia Shank, 4 in OAL

Invoice description: Bem 9/32x11/16locx3/8x4 4fl Dbl

UNSPSC: 27112803
Manufacturer PN: 36060
$66.84 EA
Factory Order
Estimated to ship in 7 days
QTY:


GARR End Mill, Ball Nose Center Cutting Double End, Series: 535M, 9/32 in Diameter Cutter, 4 in Overall Length, 11/16 in Length of Cut, 4 Flutes, Helix Flute, 3/8 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Weldon Flat Shank, Submicron Solid Carbide

  • Features

  • For strength and adaptability when converting from high speed steel
  • Ball radius tolerance +0.000 to 0.001 in (+0.000 to 0.025 mm)

Specifications

Cutter Diameter9/32 in
Cutting DirectionRight Hand
Flute TypeHelix
Helix Angle30 deg
Length of Cut11/16 in
MaterialSubmicron Solid Carbide
Number of Flutes4
Overall Length4 in
Series535M
Shank Diameter3/8 in
Shank TypeWeldon Flat
TypeBall Nose Center Cutting Double End

Additional Information

Country of OriginUS
