GARR GARR 35070

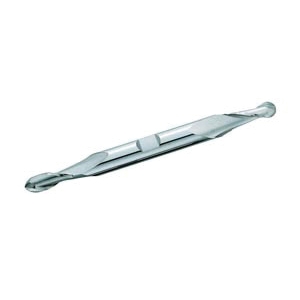

GARR 35070 Ball Nose Center Cutting Double End End Mill, 5/16 in Dia Cutter, 3/4 in Length of Cut, 2 Flutes, 3/8 in Dia Shank, 4 in OAL

Invoice description: Bem 5/16x3/4locx3/8x4 2fl Dbl

UNSPSC: 27112803
Manufacturer PN: 35070
$66.84 EA
Factory Order
Estimated to ship in 7 days
QTY:


GARR End Mill, Ball Nose Center Cutting Double End, Series: 525M, 5/16 in Diameter Cutter, 4 in Overall Length, 3/4 in Length of Cut, 2 Flutes, Helix Flute, 3/8 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Weldon Flat Shank, Submicron Solid Carbide

  • Features

  • For strength and adaptability when converting from high speed steel
  • Ball radius tolerance +0.000 to 0.001 in (+0.000 to 0.025 mm)

Specifications

Cutter Diameter5/16 in
Cutting DirectionRight Hand
Flute TypeHelix
Helix Angle30 deg
Length of Cut3/4 in
MaterialSubmicron Solid Carbide
Number of Flutes2
Overall Length4 in
Series525M
Shank Diameter3/8 in
Shank TypeWeldon Flat
TypeBall Nose Center Cutting Double End

Additional Information

Country of OriginUS
