GARR GARR 35037

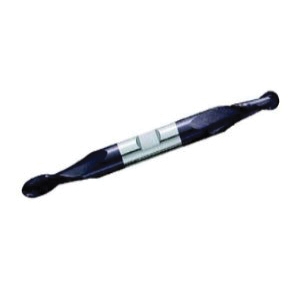

GARR 35037 Ball Nose Center Cutting Double End End Mill, 3/16 in Dia Cutter, 1/2 in Length of Cut, 2 Flutes, 3/8 in Dia Shank, 3 in OAL, TiAlN Coated
Invoice description:
Bem 3/16x1/2locx3/8x3 2fl Tialn Dbl
Factory Order
GARR End Mill, Ball Nose Center Cutting Double End, Series: 525MA, 3/16 in Diameter Cutter, 3 in Overall Length, 1/2 in Length of Cut, 2 Flutes, Helix Flute, 3/8 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Weldon Flat Shank, Submicron Solid Carbide, TiAlN Coated
Features
- For strength and adaptability when converting from high speed steel
- Up to 40% faster than uncoated
- Ball radius tolerance +0.000 to 0.001 in (+0.000 to 0.025 mm)
Specifications
ApplicationDry or Semi-Dry Machining
Cutter Diameter3/16 in
Cutting DirectionRight Hand
FinishTiAlN Coated
Flute TypeHelix
Helix Angle30 deg
Length of Cut1/2 in
MaterialSubmicron Solid Carbide
Number of Flutes2
Overall Length3 in
Series525MA
Shank Diameter3/8 in
Shank TypeWeldon Flat
TypeBall Nose Center Cutting Double End
Additional Information
Country of OriginUS
Specification Sheet
