GARR GARR 32560

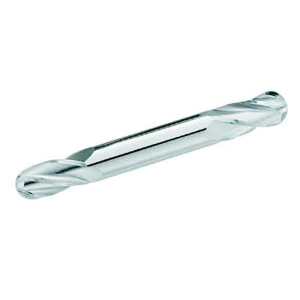

GARR 32560 550M Ball End Center Cutting Double End Mill, 3.5 mm Dia Cutter, 9.5 mm Length of Cut, 4 Flutes, 4 mm Dia Shank, 65 mm OAL, Uncoated
Invoice description:
Bem 3.5x9.5locx4x65mm 4fl N/c Dbl
Factory Order
GARR End Mill, Ball End Center Cutting Double End, 3.5 mm Cutter Dia, 65 mm Overall Length, 9.5 mm Length of Cut, 4 Flutes, Spiral Flute, 4 mm Shank Dia, Right Hand Cutting, 30 deg Helix Angle, Submicron Solid Carbide, Uncoated
Features
- Ball radius tolerance +0.000 to 0.001 in (+0.000 to 0.025 mm)
Specifications
Cutter Diameter3.5 mm
Cutting DirectionRight Hand
FinishUncoated
Flute TypeSpiral
Helix Angle30 deg
Length of Cut9.5 mm
MaterialSubmicron Solid Carbide
Number of Flutes4
Overall Length65 mm
Series550M
Shank Diameter4 mm
TypeBall End Center Cutting Double End
Additional Information
Country of OriginUS
