GARR GARR 32037

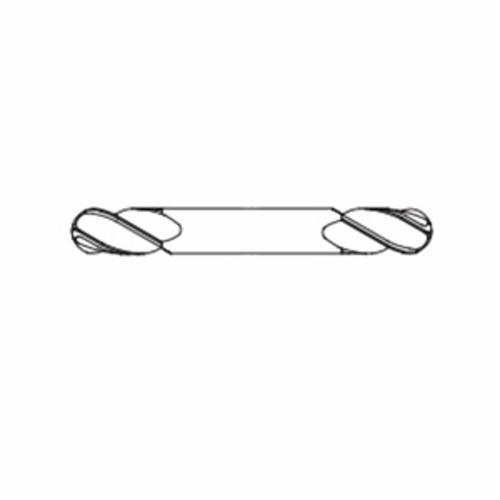

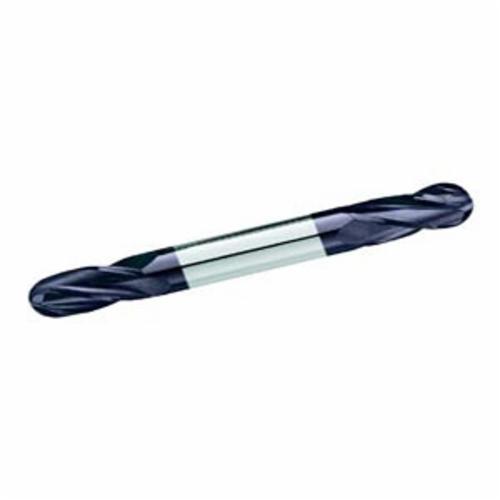

GARR 32037 530MA Ball End Center Cutting Double End Standard Length End Mill, 1/16 in Dia Cutter, 3/16 in Length of Cut, 4 Flutes, 1/8 in Dia Shank, 2 in OAL, TiALN Coated
Invoice description:
Bem 1/16x3/16locx1/8x2 4fl Tialn Dbl
Factory Order
GARR End Mill, Ball End Center Cutting Double End Standard Length, Series: 452, 1/16 in Cutter Dia, 2 in Overall Length, 3/16 in Length of Cut, 4 Flutes, Spiral Flute, 1/8 in Shank Dia, Right Hand Cutting, 30 deg Helix Angle, 1-13/16 in Shank Length, Solid Submicron Carbide, TiALN Coated
Features
- Up to 40% faster than uncoated
- Extremely versatile
- Ball radius tolerance +0.000 to 0.001 in (+0.000 to 0.025 mm)
Specifications
ApplicationDry or Semi-Dry Machining
Cutter Diameter1/16 in
Cutting DirectionRight Hand
FinishTiALN Coated
Flute TypeSpiral
Helix Angle30 deg
Length of Cut3/16 in
MaterialSolid Submicron Carbide
Number of Flutes4
Overall Length2 in
Series530MA
Shank Diameter1/8 in
Shank Length1-13/16 in
TypeBall End Center Cutting Double End Standard Length
Additional Information
Country of OriginUS
