GARR GARR 31117

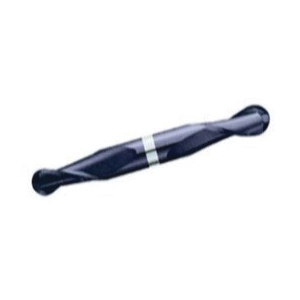

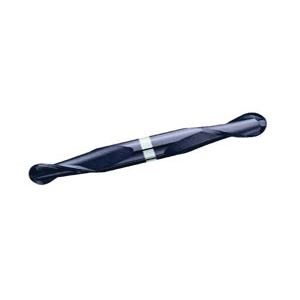

GARR 31117 520MA Ball Nose Center Cutting Double End Ball End Mill, 3/8 in Dia Cutter, 3/4 in Length of Cut, 2 Flutes, 3/8 in Dia Shank, 3-1/2 in OAL, TiAlN Coated

Invoice description: Bem 3/8x3/4locx3/8x3-1/2 2fl Tialn Dbl

UNSPSC: 27112803
Manufacturer PN: 31117
$77.70 EA
Factory Order
Estimated to ship in 7 days
QTY:


GARR Ball End Mill, Center Cutting Double End, Series: 520MA, 3/8 in Diameter Cutter, 3-1/2 in Overall Length, 3/4 in Length of Cut, 2 Flutes, Spiral Flute, 3/8 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Solid Submicron Grain Carbide, TiAlN Coated

  • Features

  • Up to 40% faster than uncoated
  • Ball radius tolerance +0.000 to 0.001 in (+0.000 to 0.025 mm)

Specifications

ApplicationDry or Semi-Dry Machining
Cutter Diameter3/8 in
Cutting DirectionRight Hand
FinishTiAlN Coated
Flute TypeHelix
Helix Angle30 deg
Length of Cut3/4 in
MaterialSubmicron Solid Carbide
Number of Flutes2
Overall Length3-1/2 in
Series520MA
Shank Diameter3/8 in
TypeBall Nose Center Cutting Double End

Additional Information

Country of OriginUS
