GARR GARR 28610

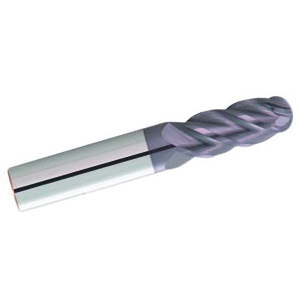

GARR 28610 VRX Ball End Center Cutting Roughing/Finishing End Mill, 5/16 in Dia Cutter, 7/16 in Length of Cut, 4 Flutes, 5/16 in Dia Shank, 2 in OAL, Balinit X.CEED
Invoice description:
Bem 5/16x7/16locx5/16x2 4fl Hp
In stock
(3)
GARR Roughing/Finishing End Mill, Ball End Center Cutting, Series: VRX, 5/16 in Diameter Cutter, 2 in Overall Length, 7/16 in Length of Cut, 4 Flutes, Spiral Flute, 5/16 in Shank Diameter, Right Hand Cutting Direction, 41 deg Helix Angle, Plain Shank, 1-9/16 in Shank Length, Solid Submicron Carbide, Balinit X.CEED
Features
- The standard in high performance milling
- Reduces vibration for more aggressive machining
- For stainless steel, inconel, pH materials, titanium and tool steels
- Ball radius tolerance +0.000 to 0.001 in (+0.000 to 0.025 mm)
Specifications
Cutter Diameter5/16 in
Cutting DirectionRight Hand
FinishBalinit X.CEED
Flute TypeSpiral
Helix Angle41 deg
Length of Cut7/16 in
MaterialSolid Submicron Carbide
Number of Flutes4
Overall Length2 in
SeriesVRX
Shank Diameter5/16 in
Shank Length1-9/16 in
Shank TypePlain
TypeBall End Center Cutting
Additional Information
Country of OriginUS
Specification Sheet
