GARR GARR 28050

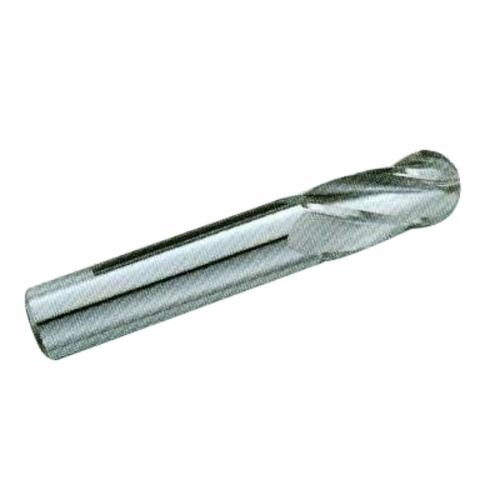

GARR 28050 390M Ball End Center Cutting Standard Length End Mill, 1/4 in Dia Cutter, 3/4 in Length of Cut, 4 Flutes, 1/4 in Dia Shank, 2-1/2 in OAL, Uncoated
Invoice description:
Bem 1/4x3/4locx1/4x2-1/2 4fl N/c
Factory Order
GARR End Mill, Ball End Center Cutting Standard Length, Series: 390M, 1/4 in Diameter Cutter, 2-1/2 in Overall Length, 3/4 in Length of Cut, 4 Flutes, Spiral Flute, 1/4 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, 1-3/4 in Shank Length, Solid Submicron Carbide, Uncoated
Features
- Tight tolerances for precision machining
- Excellent for keyways
- For use when matching tools are necessary
- Ball radius tolerance +0.000 to 0.001 in (+0.000 to 0.025 mm)
- N/C tolerance
Specifications
Cutter Diameter1/4 in
Cutting DirectionRight Hand
FinishUncoated
Flute TypeSpiral
Helix Angle30 deg
Length of Cut3/4 in
MaterialSolid Submicron Carbide
Number of Flutes4
Overall Length2-1/2 in
Series390M
Shank Diameter1/4 in
Shank Length1-3/4 in
TypeBall End Center Cutting Standard Length
Additional Information
Country of OriginUS
Specification Sheet
