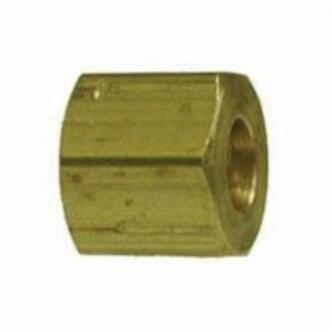

MMM Tube Nut, Nut, 5/16 in Nominal, Compression, 0.56 in Hex, 300 psi, -65 to 250 deg F, Brass, 0.44 in L
Features
- Manufactured for low and medium pressure tubing connection work where excessive vibration or tube movement is not involved
- Fair resistance use long nut when greater vibration resistance is needed
- /-0.02 tolerance on all dimensions
- Not recommended for steel tubing
Specifications
ApplicationFor use with aluminum, copper, brass and thermoplastic tubing
Dimensions0.44 in L
End StyleCompression
Fitting/Connector TypeNut
Hex Size0.56 in
MaterialBrass
Nominal Size5/16 in
Pressure Rating300 psi
Temperature Rating-65 to 250 deg F
